1GE port XPON ONU

Description Review
Description

1GE port XPON ONU

Model number: PG-GE101A



 Overview:

 1GE ONU is designed as HGU  in different FTTH solutions; the carrier-class FTTH application provides data service access.

 1GE ONU is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.

 1GE adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.

 1GE is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.

 1GE is designed by Realtek chipset 9601D



 Feature:

 Supports Dual Mode (can access GPON/EPON OLT).

 Supports SFU and HGU of EPON CTC 3.0 standard.

 Support NAT, Firewall function.

 Support Flow & Storm Control , Loop Detection and Port Forwarding.

 Support port mode of VLAN configuration

 Support LAN IP and DHCP Server configuration

 Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode

 Support IPv4/IPv6 dual stack

 Support IGMP transparent/snooping/proxy

 In compliant with ITU-T G.984.x and IEEE802.3ah standard

 Compatible with popular OLT



Specification:

Technical Item

Details

PON interface

1 GPON/EPON port(EPON PX20+ and GPON Class B+)

Upstream: 1310nm, Downstream: 1490nm

SC/APC connector

Receiving sensitivity: 27dBm

Transmitting optical power: 0~+4dBm

Transmission distance: 20KM

LAN interface

10/100/1000Mbps auto adaptive Ethernet interfaces.

10/100/1000M Full/Half, RJ45 connector

LED

4 LED, For Status of POWER, LOS, PON, LAN

Push Button

2, for Function of Power on/off, Reset

Operating condition

Temperature : 0 50

Humidity : non condensing

Storing Condition

Temperature : 40℃℃~~+60

Humidity : non condensing

Power supply

DC 12V/1A

Power Consumption

<3W

Net Weight

<0.2kg



Application:

 Typical SolutionFTTO(Office) FTTB(Building)FTTH(Home)

 Typical ServiceBroadband Internet access, IPTV, VOD.

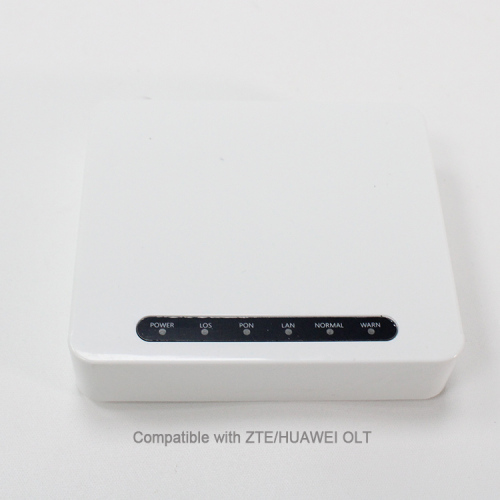

Appearance:
