1G1F+WIFI+CATV XPON ONU
Model number:PG-GE3112ZR
Overview:
PG-GE3112ZR is designed as HGU in deferent FTTH solutions; the carrier-class FTTH application provides data service access.
PG-GE3112ZR is based on mature and stable, cost-effective XPON technology. It can switch automatically with EPON and GPON mode when it access to the EPON OLT or GPON OLT.
PG-GE3112ZR adopts high reliability, easy management, configuration flexibility and good quality of service (QoS) guarantees to meet the technical performance of the module of China Telecom EPON CTC3.0.
PG-GE3112ZR is compliant with IEEE802.11n STD, adopts with 2x2 MIMO, the highest rate up to 300Mbps.
PG-GE3112ZR is fully compliant with technical regulations such as ITU-T G.984.x and IEEE802.3ah.
PG-GE3112ZR is designed by Realtek chipset 9602C.
Feature
Supports Dual Mode (can access GPON/EPON OLT).
Supports GPON G.984/G.988 standards
Support CATV interface for Video Service and remote control by Major OLT
Support 802.11n WIFI (2x2 MIMO) function
Support NAT, Firewall function.
Support Flow & Storm Control , Loop Detection, Port Forwarding and Loop-Detect
Support port mode of VLAN configuration
Support LAN IP and DHCP Server configuration
Support TR069 Remote Configuration and maintenance
Support Route PPPoE/IPoE/DHCP/Static IP and Bridge mixed mode
Support IPv4/IPv6 dual stack
Support IGMP transparent/snooping/proxy
In compliant with IEEE802.3ah standard
Compatible with popular OLT
Specification:
|
Specification Technical Item |
Details |
|
PON interface |
1 G/EPON port(EPON PX20+ and GPON Class B+) Upstream: 1310nm; Downstream: 1490nm SC/APC connector Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+4dBm Transmission distance: 20KM |
|
LAN interface |
1x10/100/1000Mbps and 1x10/100Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector |
|
WIFI Interface |
Compliant with IEEE802.11b/g/n Operating frequency: 2.400-2.4835GHz support MIMO, rate up to 300Mbps 2T2R,2 external antenna 5dBi Support: Multiple SSID Channel:13 Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM |
|
CATV Interface
|
RF, optical power : +2~-18dBm Optical reflection loss: ≥45dB Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level: ≥82dBuV（-7dBm optical input） AGC range: +2~-7dBm/-4~-13dBm/-5~-14dBm MER: ≥32dB(-14dBm optical input), ＞35(-10dBm) |
|
LED |
9 LED, For Status of WIFI、WPS、PWR、LOS、PON、LAN1~LAN2、WORN、NORMAL(CATV) |
|
Push-Button |
4, for Function of Power on/off, Reset, WPS, WIFI |
|
Operating condition |
Temperature : 0℃～+50℃ Humidity :10%～90%（non-condensing） |
|
Storing Condition |
Temperature : -40℃～+60℃ Humidity :10%～90%（non-condensing） |
|
Power supply |
DC 12V/1A |
|
Power Consumption |
<6W |
|
Net Weight |
<0.4kg |
Application:
Typical Solution： FTTO(Office)、 FTTB(Building)、 FTTH(Home)
Typical Service： Broadband Internet access, IPV, VOD, video surveillance, CATV etc

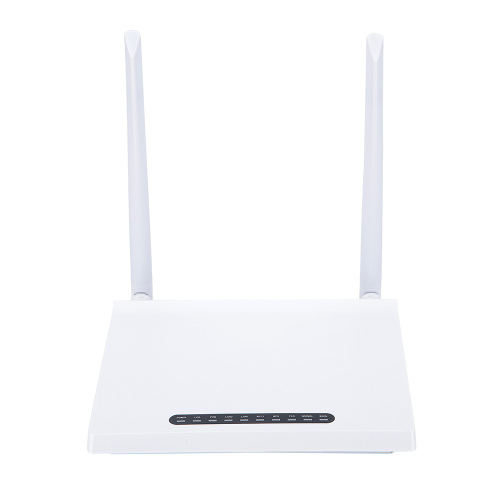

Appearance:
