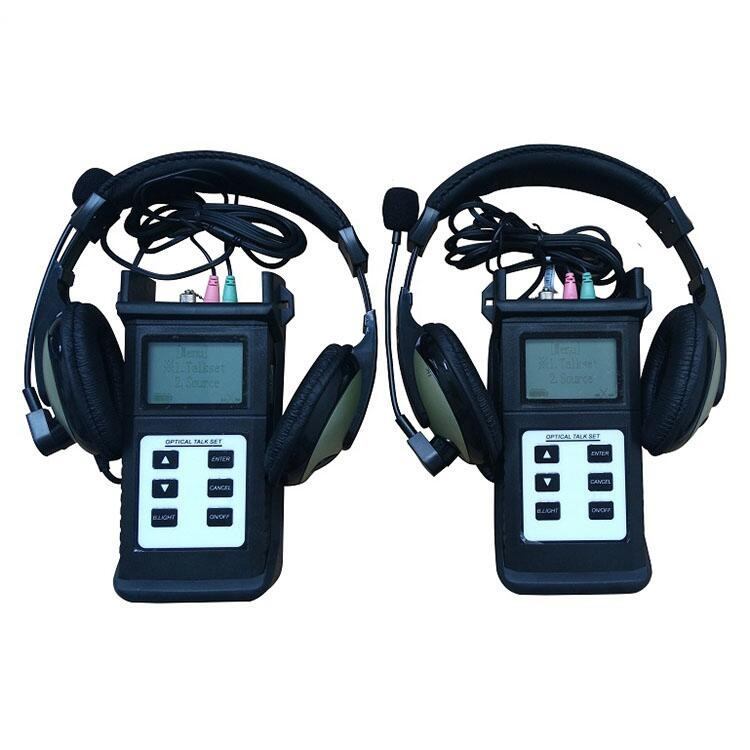

PGOTS700 series optic fiber talk set
Product Description:
PGOTS700 is an intelligent and efficient instrument that combines in one set the functions of both a digital optical phone and a stabilized light source. It is widely used in operations of installation, optical testing, maintenance and fiber attenuation value testing in data network, CATV and Telecommunication network. The PGOTS700 Talk Set can carry out full-duplex communication with high quality connection and not be affected by distance.
Features:
Full-duplex digital communication with high quality conversation connection and low background noise
Together with Optical Clip-on Coupler, enables on line communications available
Combining functions of both a digital optical phone call and a stabilized light source.
Large LCD display with backlight
Low battery power indication
Specifications:
| Model |
PGOTS700 |
Wavelength(nm)
|
1310/1550
|
Emitter Type
|
FP-LD
|
Transmission Distance
|
≥80km
|
Dynamic Range
|
40dB
|
| Output Power |
-5~-7dBm(9/125um), CW or 2KHz, 1KHz, 270Hz Modulation |
| Output Stability |
±0.1dB/±0.25dB(1/8hrs) CW |
| Power Supply |
Rechargeable Battery + Power Supply Adaptor |
| Battery Operating Time |
5 hours |
| Optical Connector |
FC/PC |
Operating Temperature(℃)
|
-10 ~ +60
|
Storage Temperature(℃)
|
-25 ~ +70
|
Dimension(mm)
|
215X115X55
|
| Weight(g) |
520 |
