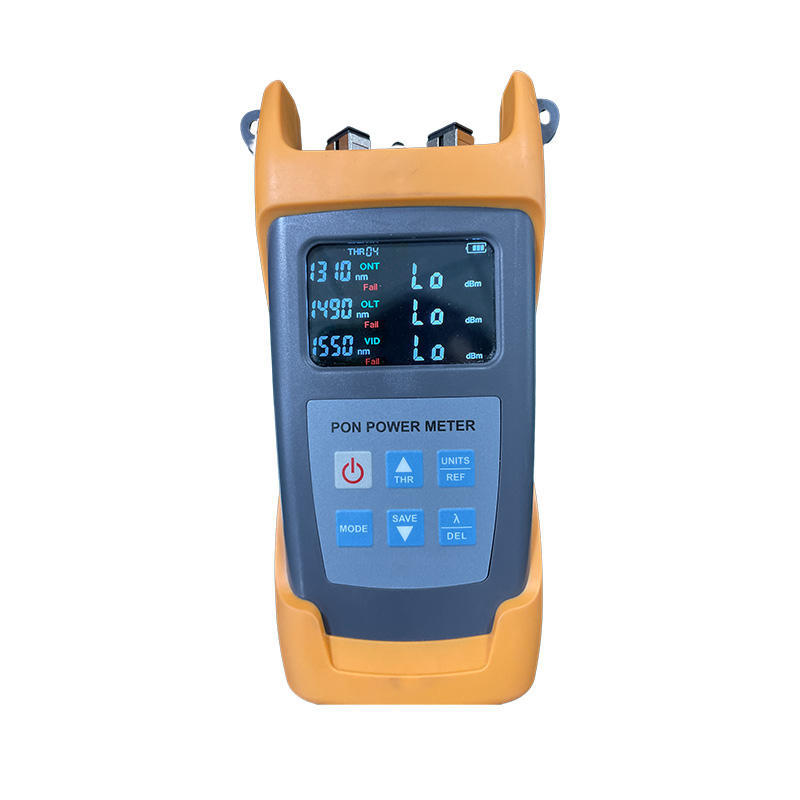

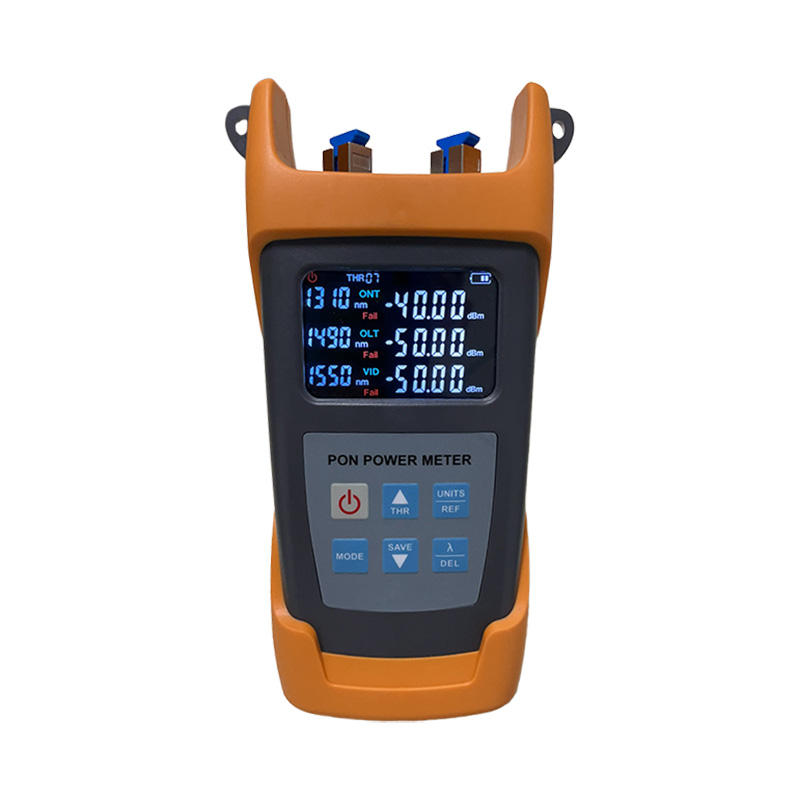

PG-PON82 series optical pon power meter
Product Overview:
The PON optical power meter is a test meter for FTTx's service andmaintenance. It can measure voice, data and RF video signals over opticalfiber links. The upgraded color LCD display and threshold data functionthat can be manually set by the instrument machine are more suitable forPON networkengineering, construction and maintenance needs.
Feature:
1.Color LCD screen display
2.Supports synchronous measurement and display of voice, data andvideo signals in a PON architecture10
3.Supports measurement of 1310nm upstream burst signal and1490/1550nm downstream signal
4.Meter sets the measurement and alarm threshold
5.Data store function 1000
6.Supports visible red light fault location and common power meterfunction
7.Supports dry battery, lithium battery, nickel metal hydride battery andadapter power supply
Specification:
| PON POWER METER MODE |
| Measuring Wavelength |
1310nm |
1490nm |
1550nm |
Measuring range(dBm)
|
+13～-40
|
+13～-50
|
+25～-50
|
Spectral band-width(nm)
|
1310±50
|
1490±10
|
1550±15
|
| IL(dB) |
≤1.5 |
Uncertainty(dB)
|
≤0.5 |
| Interface type |
SC/PC(optional) |
Displayresolution (dB)
|
0.01 |
Threshold Settings
|
10 |
Data storage
|
1000 |
| Standard OPM (optional) |
Measuring range(dBm)
|
+26～-50
|
Calibration wavelength(nm)
|
850/1300/1310/1490/1550/1625 |
| Uncertainty(dB)² |
≤0.5 |
VFL(optional)
|
| Calibration wavelength(nm) |
650 |
Output power(mW)
|
10 |
Modulation frequency
|
Lighting Form,2HZ |
Others
|
Operating temperature(℃)
|
-10～+60 |
Storage temperature(℃)
|
25～+70
|
Relative humidity
|
≤75%RH |
Communication interface
|
MiniUSB
|
Power supply
|
3*AA1.5Vbattery.Mini USB power
|
Operating time(h)
|
≥80H |
Dimension(mm)
|
192mm×105mm×50mm |
Weight(g)
|
300 |
|
|
|
|
|
|
|
|
|
|

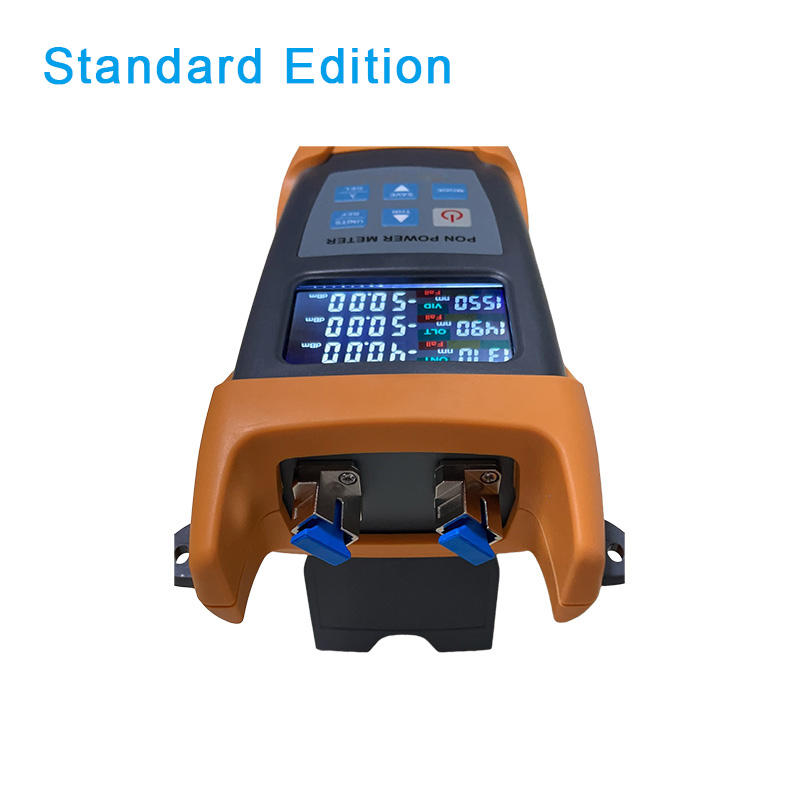

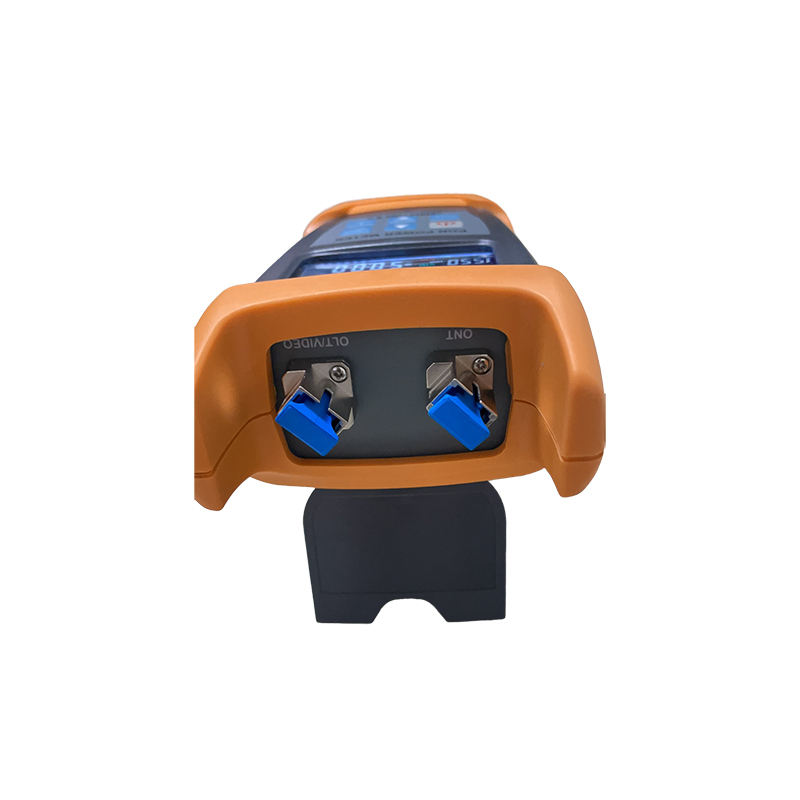

| 1- ONT Uplink signal detection port(1310nm) |
| 2-OLTNIDEO Downlink signal detection port(1490/1550nm) |
| 3- OPM standard power meter probe port (optionab) |
| 4-VFL(optional) |
| 5- Display screen |
| 6- Key function area |
| 7-Mini USB port |
