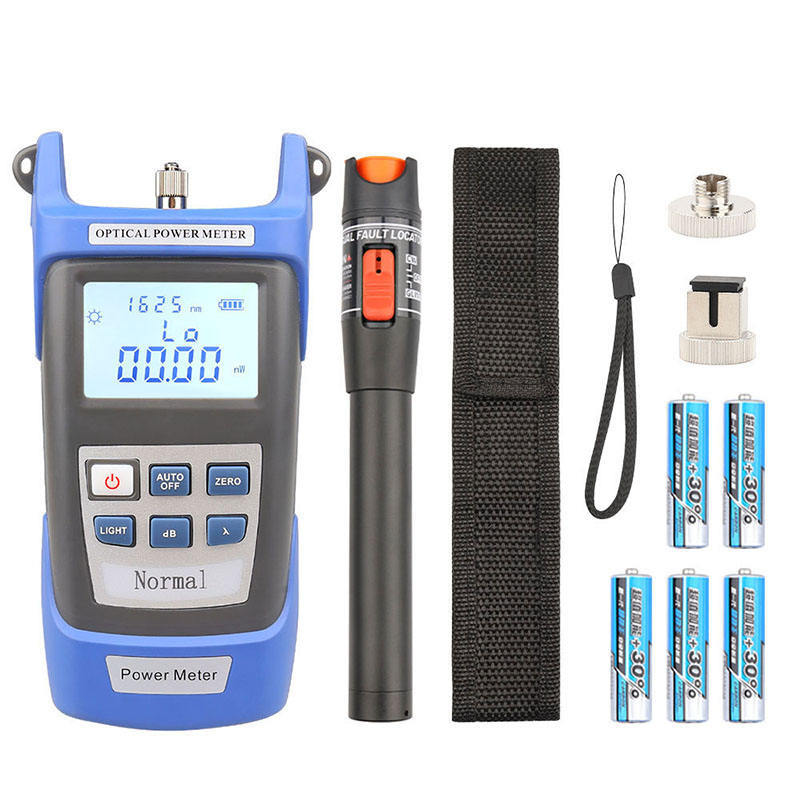

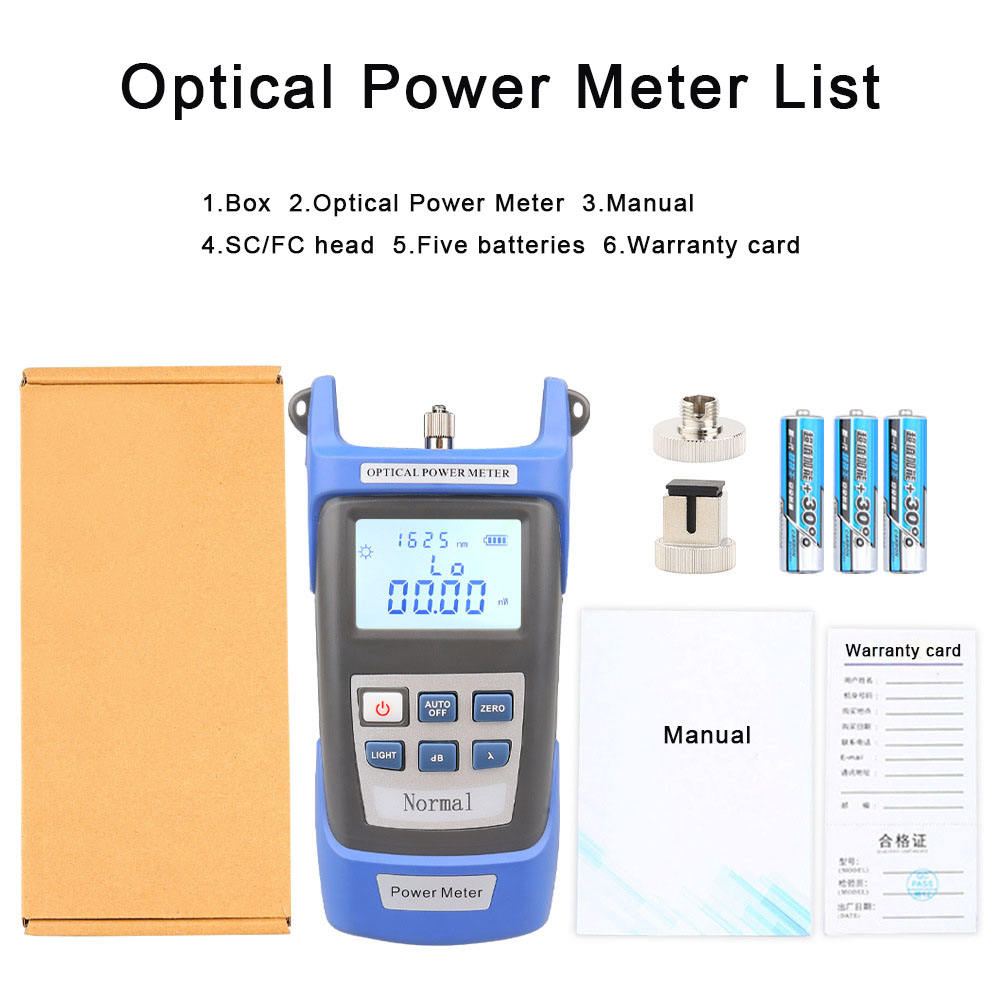

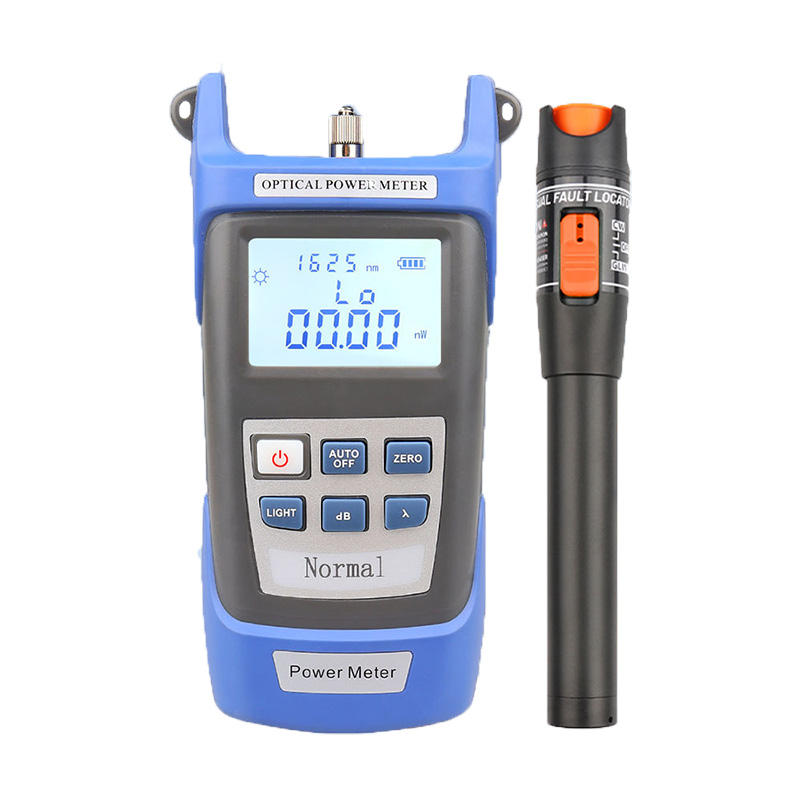

PG-PM12 series optical power meter
Product Description:
Product Description:7 different wavelengths available for various tests, mainly used for continuous optical signal power measurement and fiber optic line on-off testing. Controlled by a single chip microprocessor, suitable for various testing environments with complete functions
| Model Number | PG-PM12 | ||
| Place of Origin |
Guangdong, China |
||
| Brand Name |
PIOGOODS |
||
| Use |
FTTH |
||
| Warranty Time |
1 years |
||
| Network | optical fiber network | ||
| Product name | Fiber Optic Power Meter Visual Fault Locator | ||
| Place of Origin |
Shenzhen |
||
| wavelength |
850nm~1625nm |
||
| Connector Type |
SC/FC/ST |
||
| Measurement Range | -70~+6dBm |
||
| Operating Temperature | -10~+60℃ | ||
| Auto Power Off Time | 10 minutes. | ||
| Continuous Working Time | Not less than 48 hours | ||

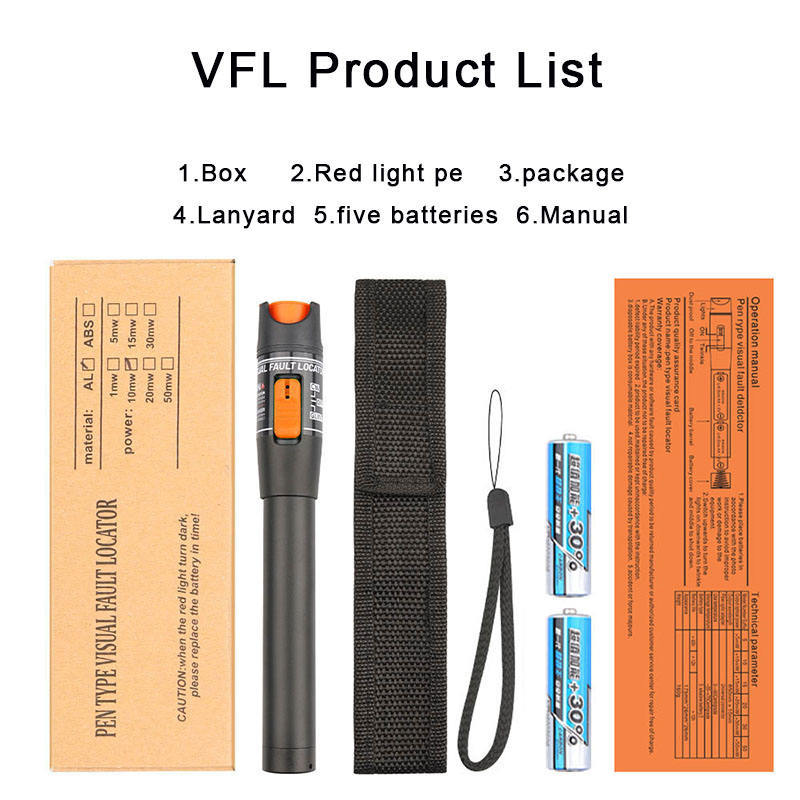

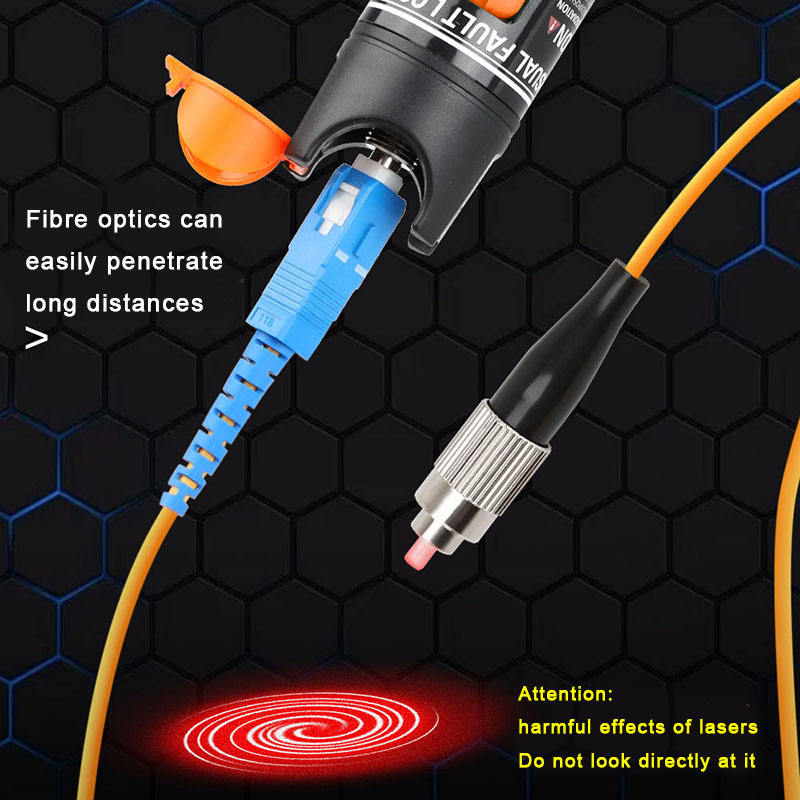

| VFL Output Power | 10mW | ||
| VFL Wavelength | 650nm | ||
