Product Description:
PG-OPM508 Is a handheld optical power meter, can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.
Features:
Reference power level storage(Ref Setting)
User self-calibration function
Comfortable LCD display and backlight LCD display supports
night operation.
Power measurements in dBm or mw and insertion loss in dB
Optional 10 minutes Auto-off function

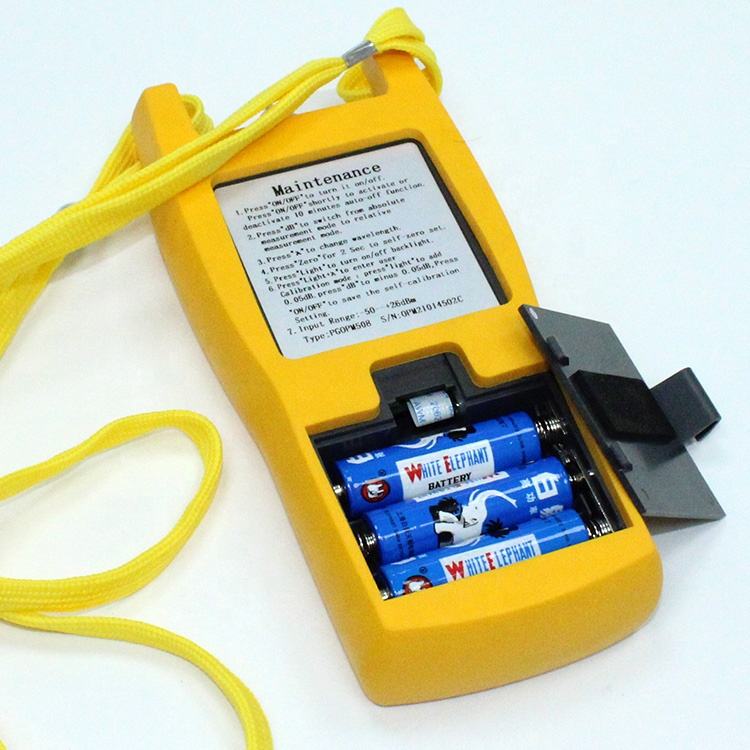

AA alkaline batteries can last more than 140 hours, AC adaptor also available
Low battery power indication
Specifications:
| Model | PG-OPM520A | PG-OPM520C |
| Wavelength(nm) | 800~1700nm | |
| Detector Type | InGaAs | |
| Detector Size |
Ø 1.0mm | |
| Measurement Range (dBm) | -70~+10 |
-50~+30 |
| Uncertainty | ±5% |
|
| Calibrated Wavelength(nm) | 850/1300/1310/1490/1550/1625nm |
|
| Resolution(dB) | 0.01 |
|

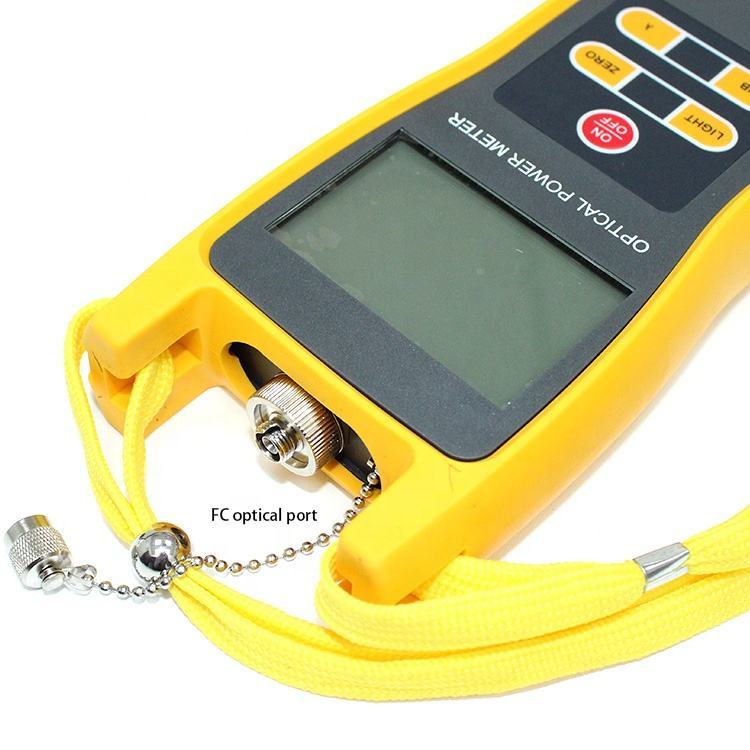

| Optical | Connector FC(interchangeable SC,ST) / as well as 2.5mm universal |
|
| Power Supply | Alkaline Battery(3 AA 1.5V batteries); AC Adaptor(9V) |
|
| Battery Operating Time | 140 h with 1.5V Battery(3pcs) |
|
| Operating Temperature(℃) | -10 ~ +60 |
|
| Storage Temperature( ℃) | -25 ~ +70 |
|
| Relative Humidity | 0 to 95% (non-condensing) |
|
| Dimension(mm) |
190X100X50 | |
| Weight(g) |
370 | |
|
Standard Packages |
||
| MODEL |
INCLUDES | |
| All PG-OPM520 Models |
PG-OPM520 Optical Power Meter, 3pcs 1.5V batteries, AC Adaptor, User Manual, Cotton swabs and Soft carrying case. | |
