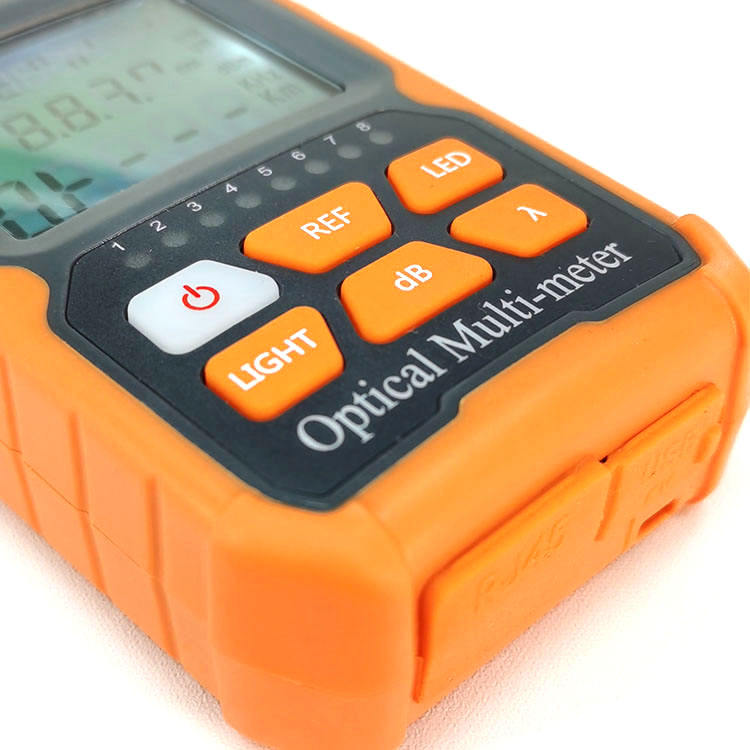

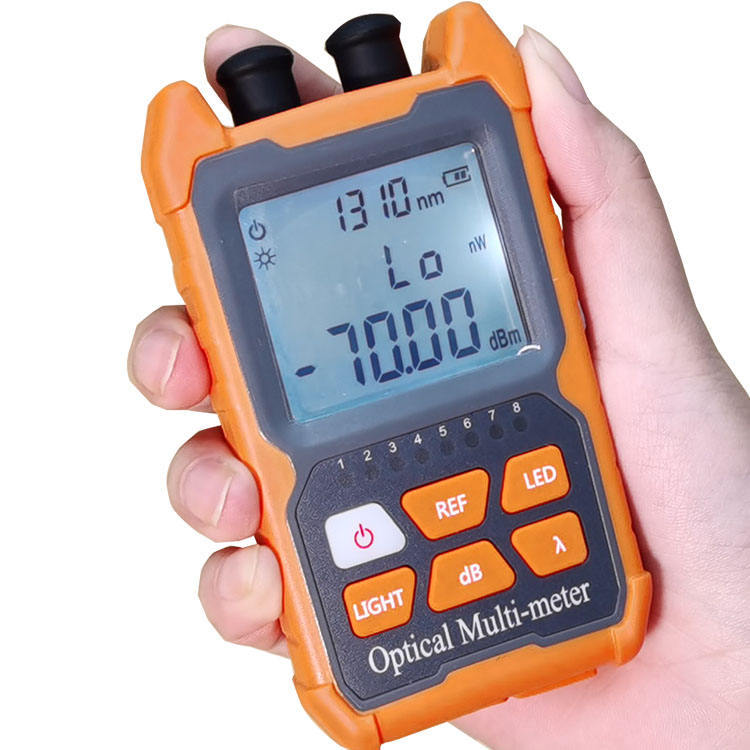

PG-OPM202 series power meter
Product Description:
PG-OPM2020 Hand-held optical power meter, red-light integrated machine series products are mainly used for continuous optical signal power measurement, optical fiber link loss testing and optical fiber line on-off testing.It is controlled by a single chip microprocessor with complete functions. Widely used in optical cable construction and maintenance, optical fiber communication, optical cable sensing, optical CATV and other fields.The fuselage design meets the requirements of human body function and adopts advanced thermoplastic moulding technology, which is beautiful and durable. The red-light integrator of optical power meter can be well protected by using embedded detectors and lasers.The machine has compact shape, automatic shutdown function, three red light modes, backlight display, wavelength memory function, optical fiber work identification, support user calibration, wide test range, support lighting.
Product characteristics:
1. Support lighting
2. Support automatic shutdown
3. Support backlight switch
4. Supporting Wavelength Memory Function
5. Support frequency identification (selection)
6. Support user calibration
7. Supporting red constant and scintillation (optional)
8. Supporting simultaneous display of linear mW and non-linear index dBm

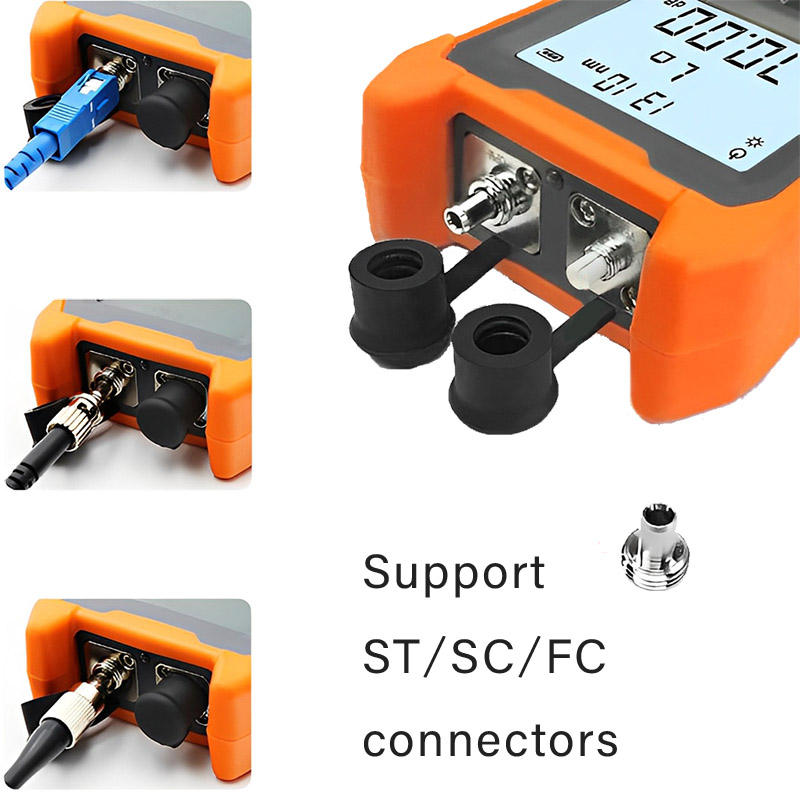

9. Supporting SCFCST Interface
10. Supporting external power supply such as charging treasure, computer, etc.
11. Supporting simultaneous linear (mW) and non-linear (dBm) display

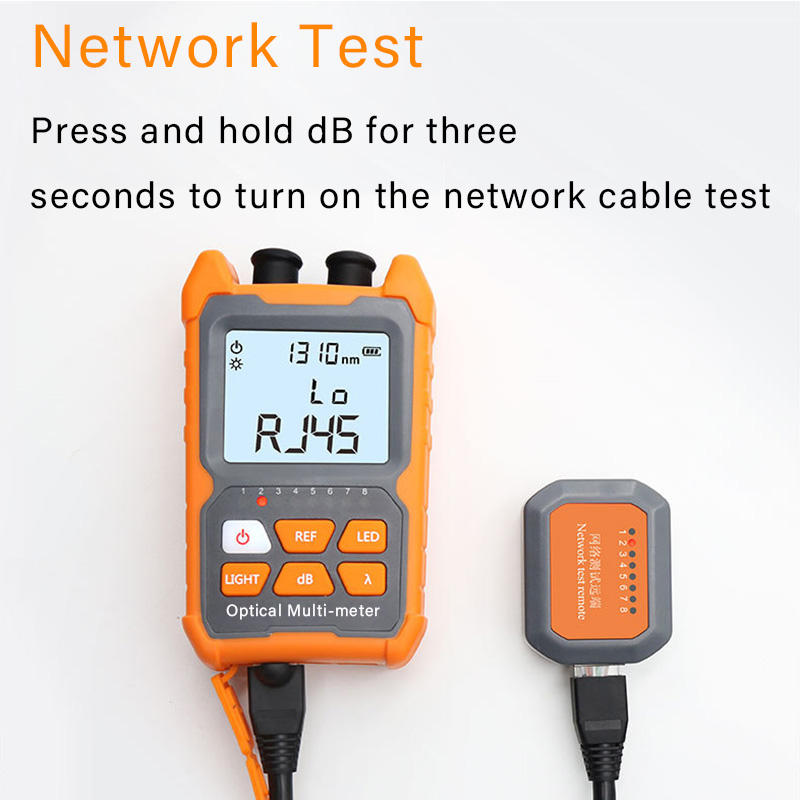

12. Supporting RJ45 testing (optional)
13. Changing, work 72 hours (optional)
Specifications:
| Wavelength range(nm) | 800-1700 |
| Connector |
Universal FC/SC/ST |
| Type of connector |
InGaAs |
| Power measurement range(dBm) |
-70~+6 or -50~+26 |
| Uncertainty |
±5% |
| Standard wavelength (nm) | 850,980,1300,1310,1490,1550,1625,1650 |
| Display resolution | Linear display: 0.1% logarithmic display: 0.01 dBm |
| 650nm light source (Options) | 1mw/10mw/20mw/30mw/50mw |
| Operating temperature (C) | -10~+60 |
| Storage temperature (C) | -30~+70 |
| Automatic shutdown time (min) | 10 |
| Continuous working hours of batteries (h) | ≥72 |
| Instrument size (mm) |
112*66*30 |

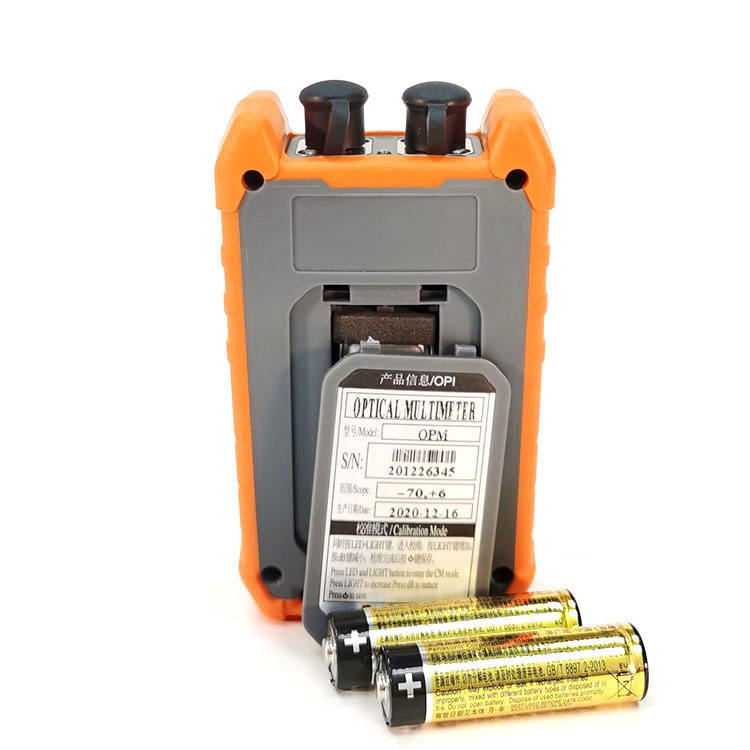

| Power Supply |
Two Segment 7 Batteries/ Rechargeable Lithium Batteries (Options) |
| Instrument Net Weight (g) |
140/150 |
