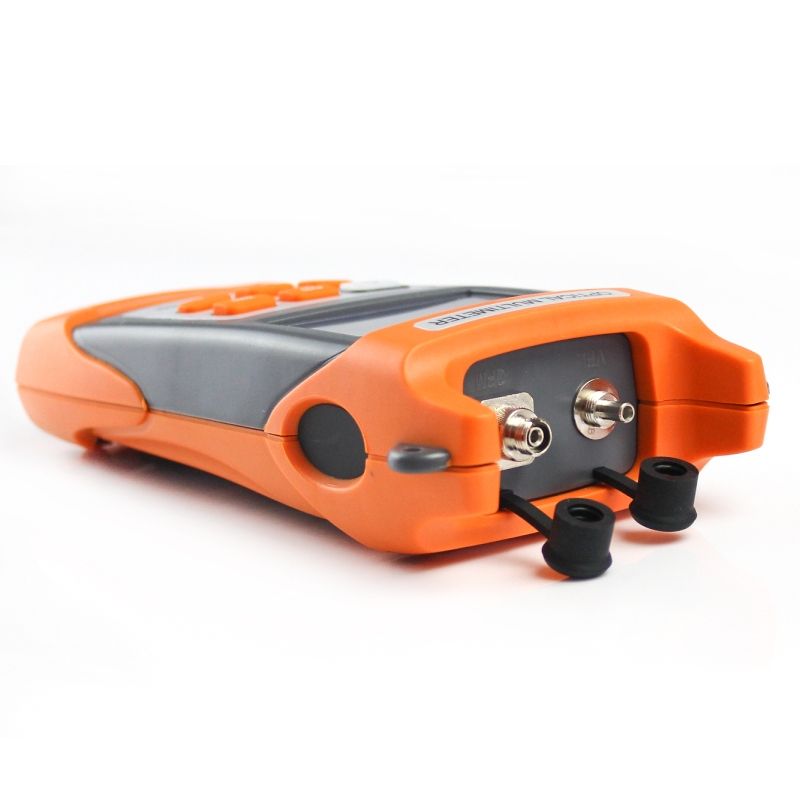

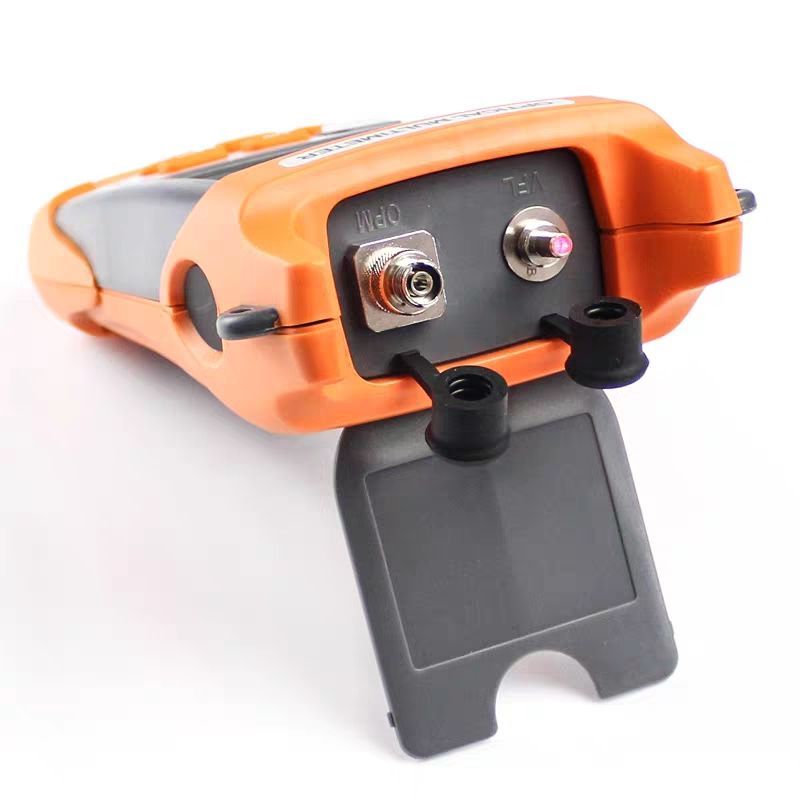

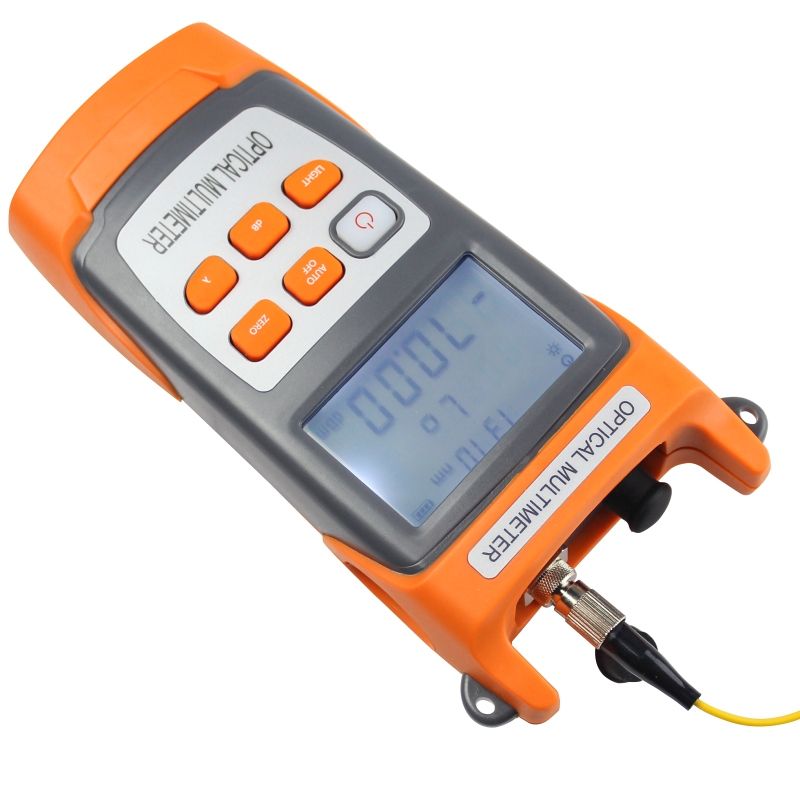

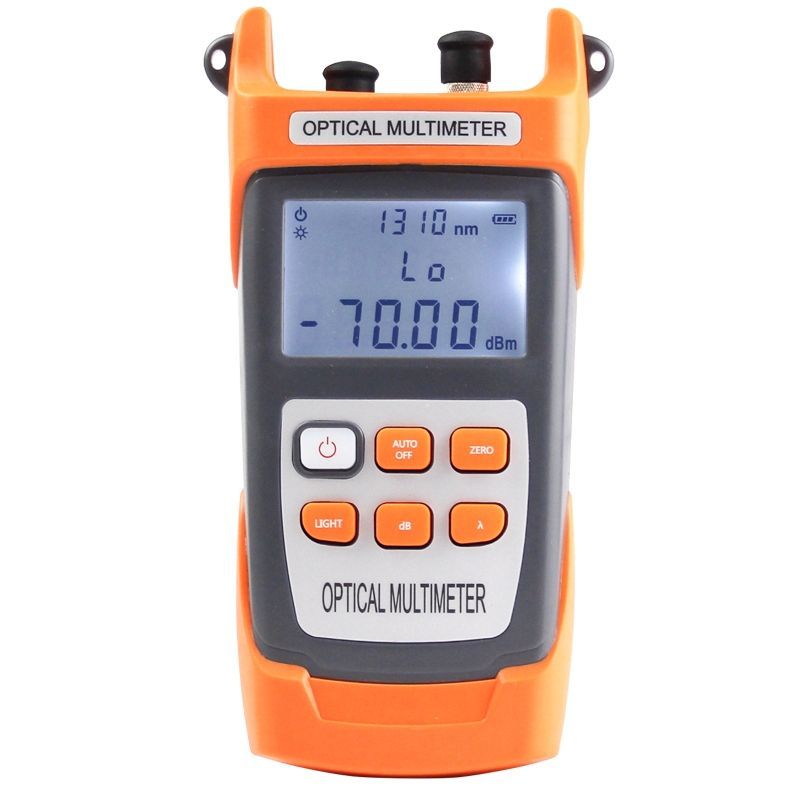

PG-OPM100 series power meter

Product Description:
PG-OPM100 is a handheld optical power meter, can be used for absolute optical power measurements as well as for relative loss measurements in optical fibers. A 1.0mm photosensitive area photodiode is used to significantly improve the stability and the reliability. It features ingenious appearance, a wide range of power measurement, high accuracy, an user self-calibration function and a reference power level storage.

Features :
Reference power level storage(Ref Setting)
User self-calibration function
Comfortable LCD display and backlight LCD display supports
night operation.
Power measurements in dBm or mw and insertion loss in dB
Optional 10 minutes Auto-off function
AA alkaline batteries can last more than 140 hours, AC adaptor also available
Low battery power indication

Specification:

Model	PG-OPM100
Wavelength(nm)	800~1700nm
Detector Type	InGaAs
Detector Size	Ø 1.0mm
Measurement Range (dBm)	-70~+10
Uncertainty	±5%
Calibrated Wavelength(nm)	850/1300, 980/1310/1490/1550/1625/1650nm
Resolution(dB)	0.01
Optical	Connector FC(interchangeable SC,ST) / as well as 2.5mm universal
Power Supply	Alkaline Battery(3 AA 1.5V batteries)
Battery Operating Time	140 h with 1.5V Battery(3pcs)
Operating Temperature(℃)	-10 ~ +60
Storage Temperature( ℃)	-20 ~ +70
Relative Humidity	0 to 95% (non-condensing)
Dimension(mm)	190X100X50
Weight(g)	370
Standard Packages
MODEL	INCLUDES
All PG-OPM100 Models	PG-OPM100 Optical Power Meter, 3pcs 1.5V batteries, SC adapter, User Manual, Carton package
