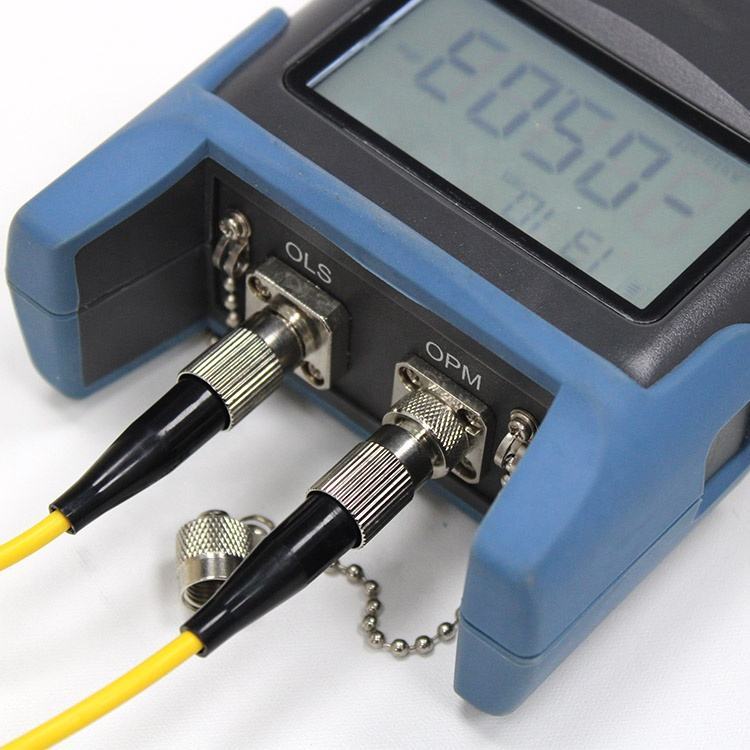

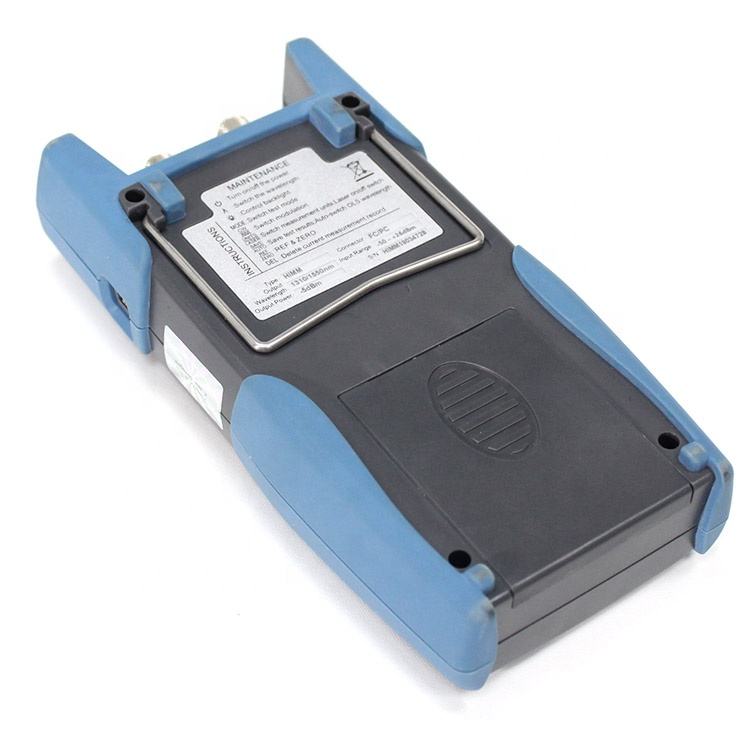

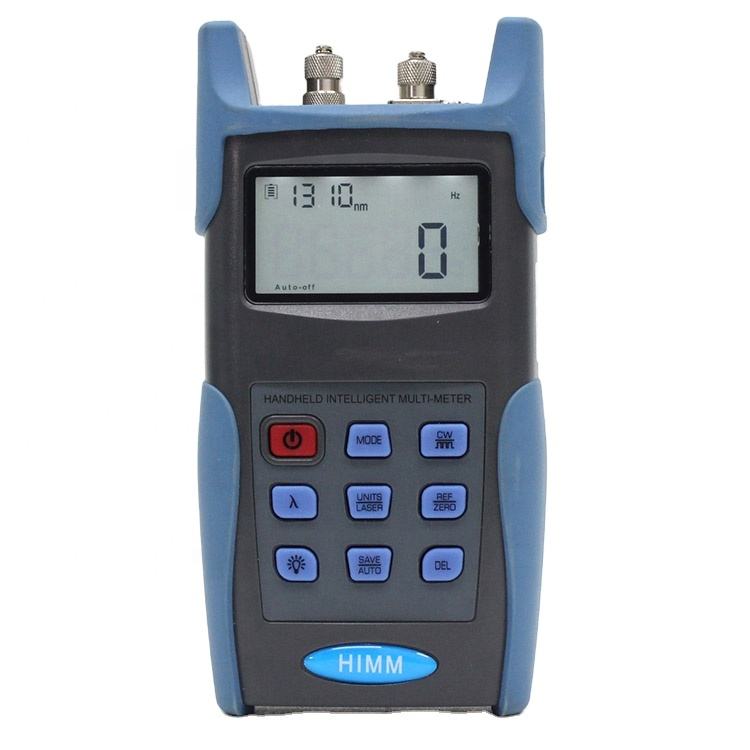

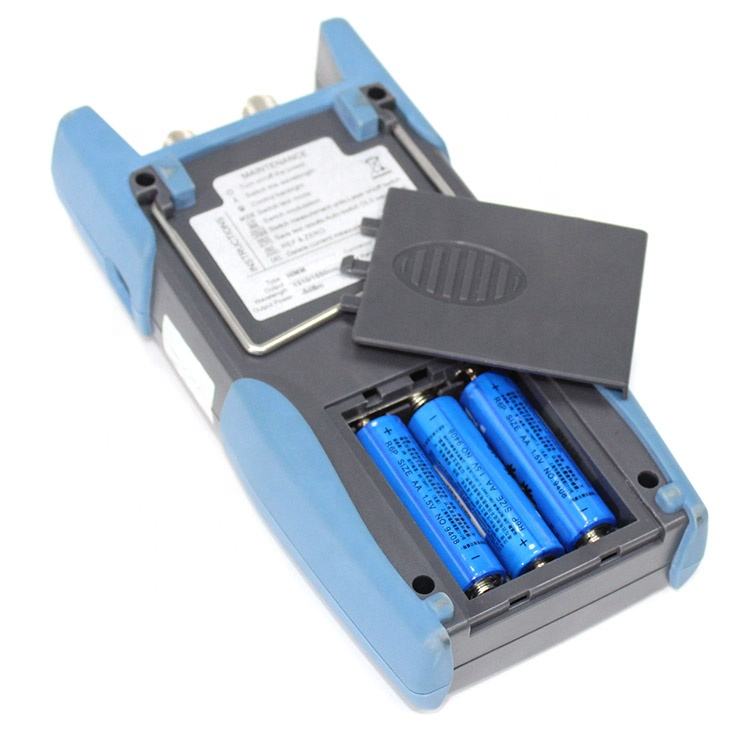

PG-OMM540 series optical power meter
· Easy mode switching function
· Stable Output light
· Automatic switching function of the internal source wavelength
· Detection of the frequency light
· USB data communication storage, uploading and for power supply
· Data Storage is up to 1000
· Providing the real-time data reading to be embedded in system
|
Instrument model and parameters |
PG-OMM540A | PG-OMM540C |
|
Power meter |
||
|
Calibration wavelength(nm) |
850,1300, 1310,1490,1550,1625 | |
|
Testing range(dBm) |
-70~+6 | -50~+26 |
|
Display resolution(dB) |
0.01 |
|
|
Uncertainty(dB) |
≤±0.25 |
|
|
linearity(dB) |
≤±0.1 | |
|
Frequency indentification range |
<10K |
|
|
Source |
||
|
Working wavelenght(nm) |
1310/1550(customizable) |
|
|
Typical Output Power(dBm) |
-5(customizable) |
|
|
Stability(dB,30min,20℃) |
≤0.1dB |
|
|
Modulation frequency (Hz) |
CW,270Hz,1KHz,2KHz |
|
