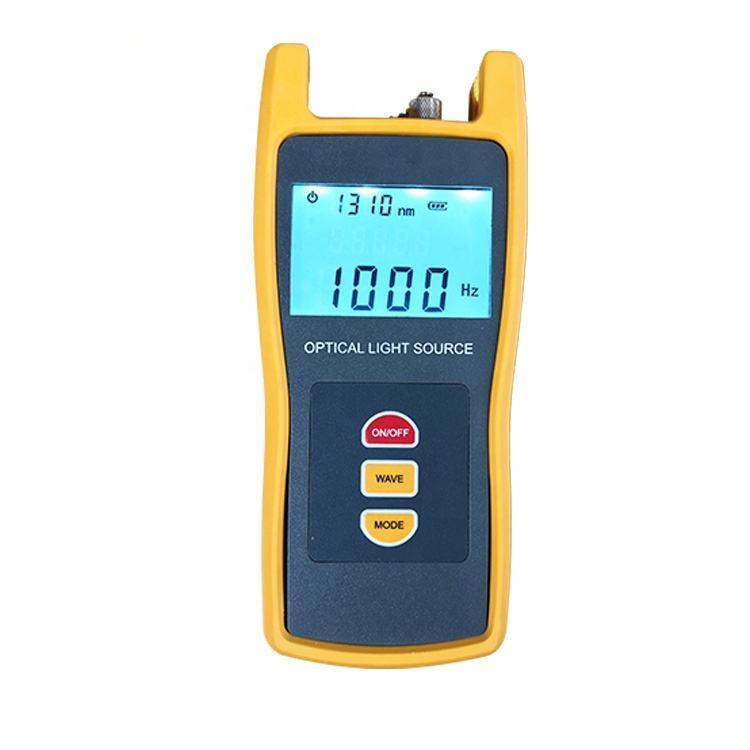

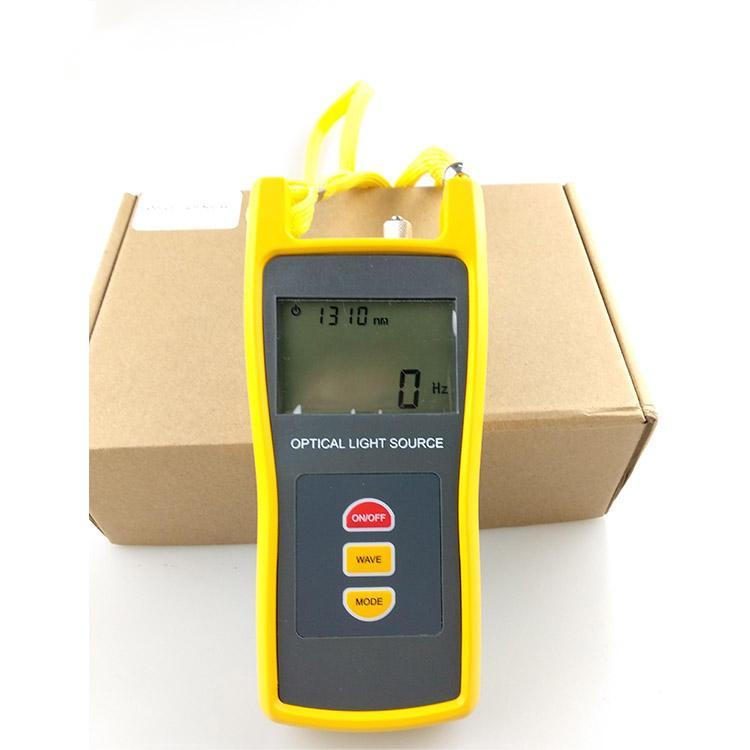

Product Description:
PG-OLS508 can provide 1 to 4 output wavelengths to meet specific requirements, including the 650nm red source and the 1310/1550nm wavelengths for single mode fiber or the 850/1300nm wavelengths for multimode fiber, as well as other wavelengths according to customer needs. Together with the PG-OPM520 optical power meter, it is a perfect solution for the fiber optic network characterization.
Features:
Provides 1~4 output wavelengths which can be optional according to customer’s needs
CW, 2Hz modulation output at 650nm, and CW, 270Hz,1KHz,2KHz
modulation output at other wavelengths.
High stability of the output power
Stable output wavelength
Backlight LCD display supports night operation
Compact size and decent appearance
Large LCD, easy operation
Alternative 10 minutes Auto-off function conserving battery life
Specifications:
| Type | PG-OLS508 | |||||
| Wavelengths(nm) | 650 | 1310/1550 | 850/1300 | 850/1300/1310/1550 | ||
| Emitter Type | FP-LD,LED or others please specify | |||||
| Typical Output Power (dBm) | 0 | -7dBm for LD, -20dBm for LED | ||||
| Spectral Width(nm) |
≤10 |
|||||
| Output Stability |
±0.05dB/15mins; ±0.1dB/ 8hours |
|||||
| Modulation Frequencies |
CW,2Hz | CW,270Hz,1KHz,2KHz |
||||

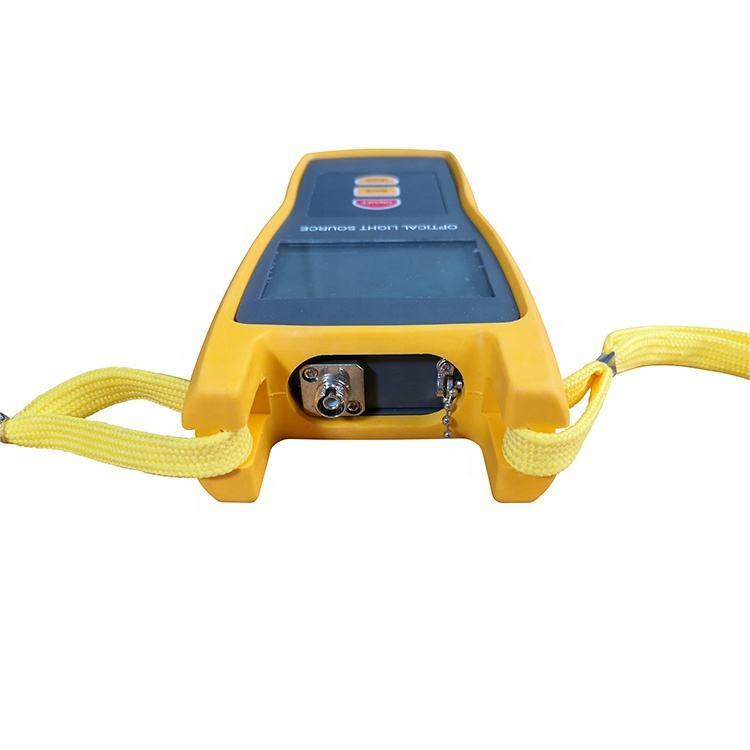

| Optical Connector |
FC/ universal adaptor | FC/PC |
||||
| Power Supply |
Alkaline Battery(3 AA 1.5V batteries) |
|||||
| Battery Operating Time(hour) |
45 |
|||||
| Operating Temperature(℃) |
-10~+60 |
|||||
| Storage Temperature(℃) |
-25~+70 |
|||||
| Dimension(mm) |
175×82×33 | |||||
| Weight (g) |
295 | |||||
