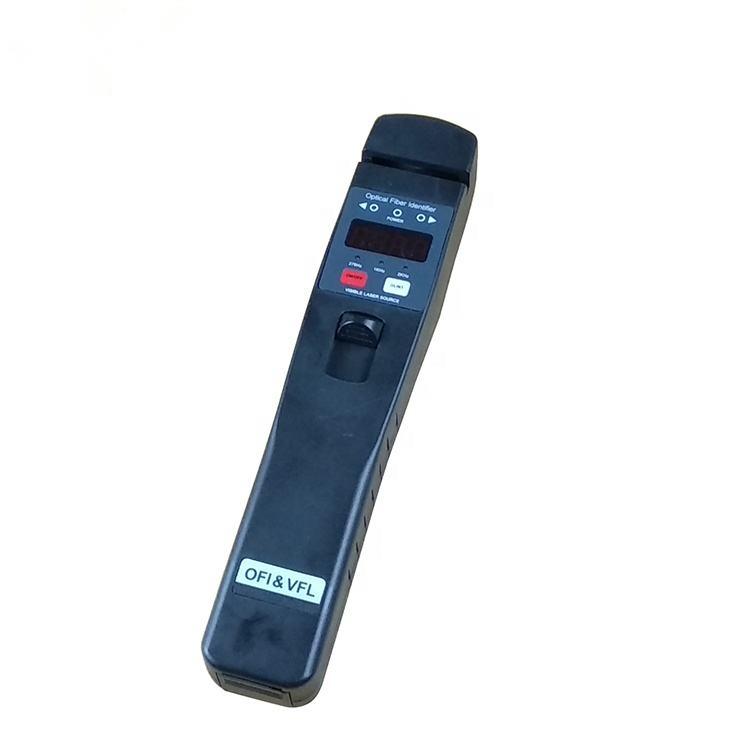

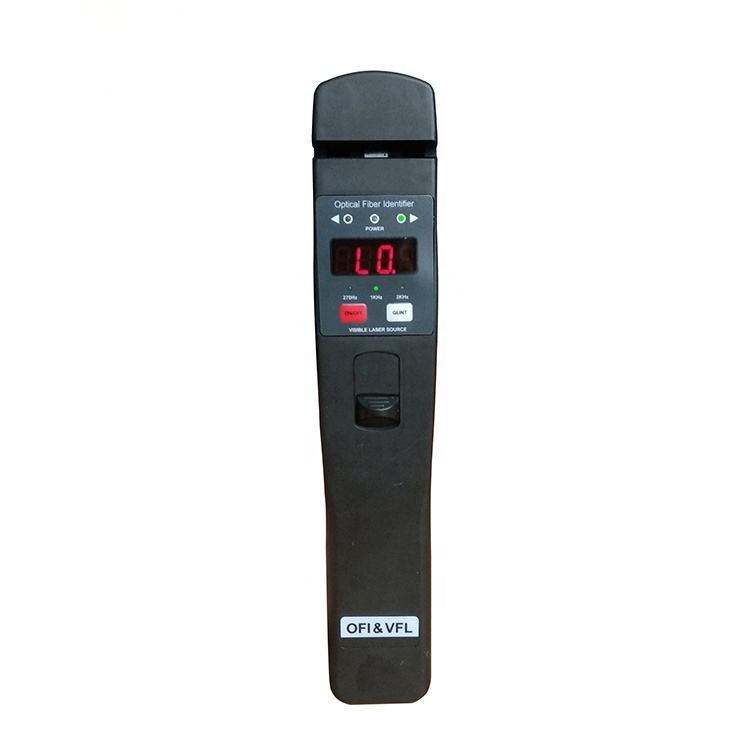

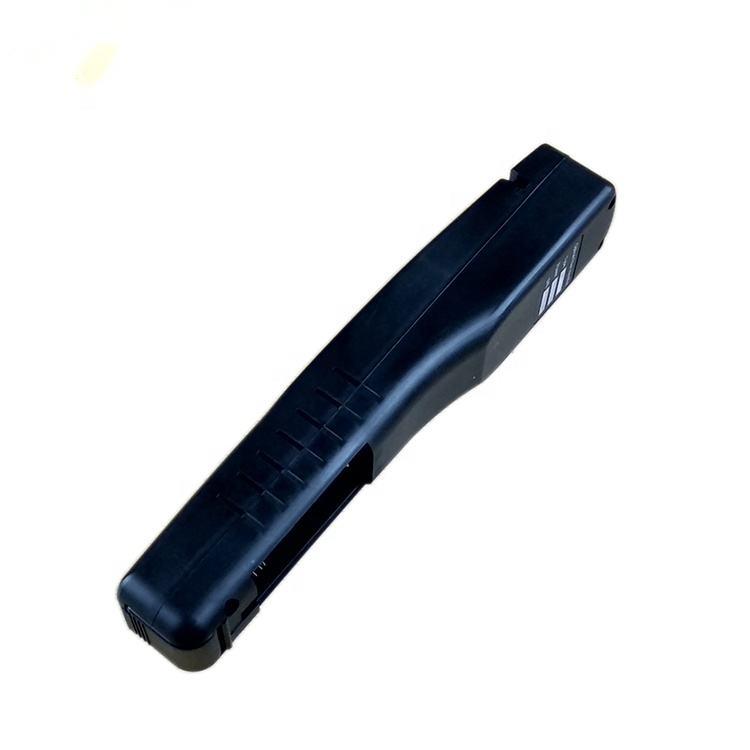

PG-OFI400 series optical fiber identifier
Product Description:
PG-OFI400 optical fiber identifiers (OFIs) are simple, rugged, easy-to-use test instruments that detect the presence of signals on optical fiber. OFIs are simply clamped onto a fiber where they induce a safe macro-bend in the fiber which allows a small amount of light to escape. By collecting and analyzing the light, the presence of network traffic, test tones and CW signals is detected and the direction of signal flow is determined.
Feature:
>> Support to detect optical signals without disrupting traffic; Based on non-destructive technology.
>> Indicate the signal direction in fiber.
>> Detect a variety of optical tones, 270Hz, 1kHz and 2kHz.
>> Suitable for 0.25mm, 0.9mm, 3.0mmfiber, and no need to replace the clamp block, more convenient than others.
>> Build in visible fault locator 1mW or 10mW optional.
>> Battery low indication.
>> Powered by 2 units of 1.5V AA alkaline Batteries.
Specifications:
| Items |
PG-OFI400 |

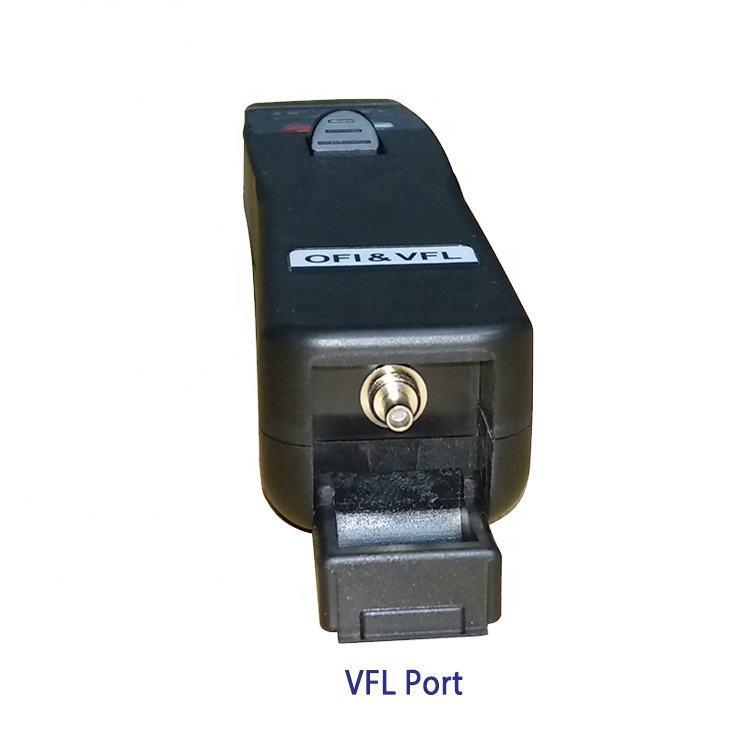

Build in visial fault locator
|
1mW (5km)
|
Wavelength Range
|
900 to 1700nm (SM)
|
Recognizable signal type*
|
CW, 2kHz, 1kHz, 270Hz ±10%
|
Detector Type
|
InGaAs 2pcs |
Fiber Type
|
0.9, 0.25, 3.0 mm fiber |
Sensitivity *
|
1310 nm |
+10dB to -20 dBm (Continuous Wave) |
| +10dB to -15 dBm (Modulated Signal) |
1550 nm
|
+10dB to -30 dBm (Continuous Wave)
|
+10dB to -25 dBm (Modulated Signal)
|
LED Indicator*
|
Signal direction; signal frequency (2kHz/1kHz/270Hz); low battery |
Signal intensity
|
0 ~ 40
|
Storage Temperature
|
-10 -- +50 ℃, < 90%RH |
Power Supply
|
AA * 2
|
Size
|
230mm * 45mm * 45mm
|
Weight
|
About 200g
|
