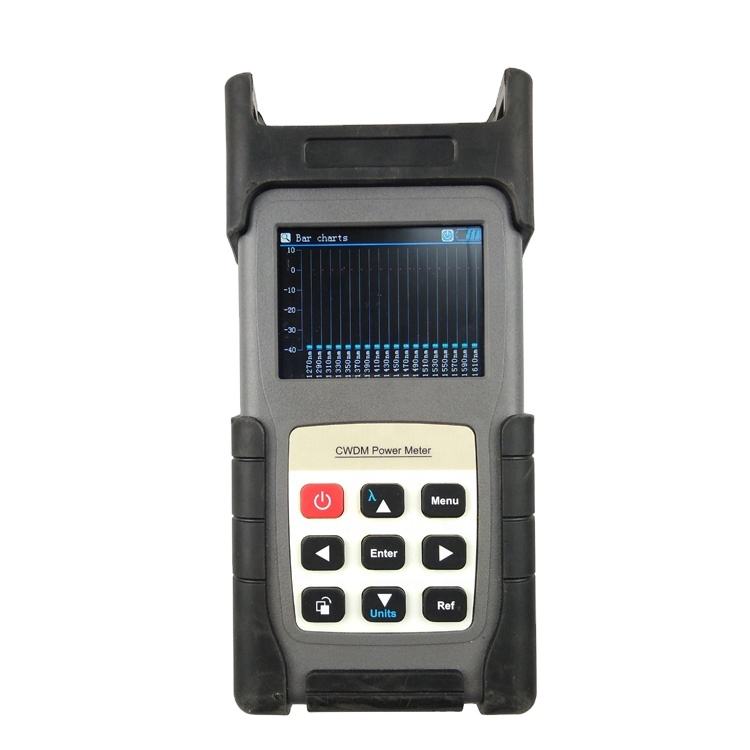

PG-OCPM18B series CWDM power meter
Product Description:PG-OCPM18B Power Meter is specially designed for system, covering wavelength from 1270~1610nm.It measures and monitors optical power and attenuation value of 18 channels from wavelength 1270nm to 1610nm wavelength.All calibrated wavelengths will be tested simultaneously and all test results will show in the LCD screen. This power meter features simple operation, quick response and high measurement accuracy which make it an ideal tester in system installation and maintenance.
| Model | PG-OCPM18B CWDM Power Meter |
| Wavelength Range | 1270 ~ 1610 nm |
| Number of Channels |
18 |
| Wavelength resolution |
20nm |
| Measuring Wavelength (nm) |
1270/1290/1310/1330/1350/1370/1390/1410/1430 1450/1470/1490/1510/1530/1550/1570/1590/1610 |
| Dynamic range | +10 to -40dBm |
| Resolution |
0.01dB |
| Optical interface |
FC/PC(FC, LC, ST available) |
| Operating Temperature |
-10 to +60℃ |
| Power supply |
Rechargeable Battery/AC power adapter |
| Time of Operating | 10h |
| Dimension | 220cm*110cm*70cm |
| Weight | 850g |
