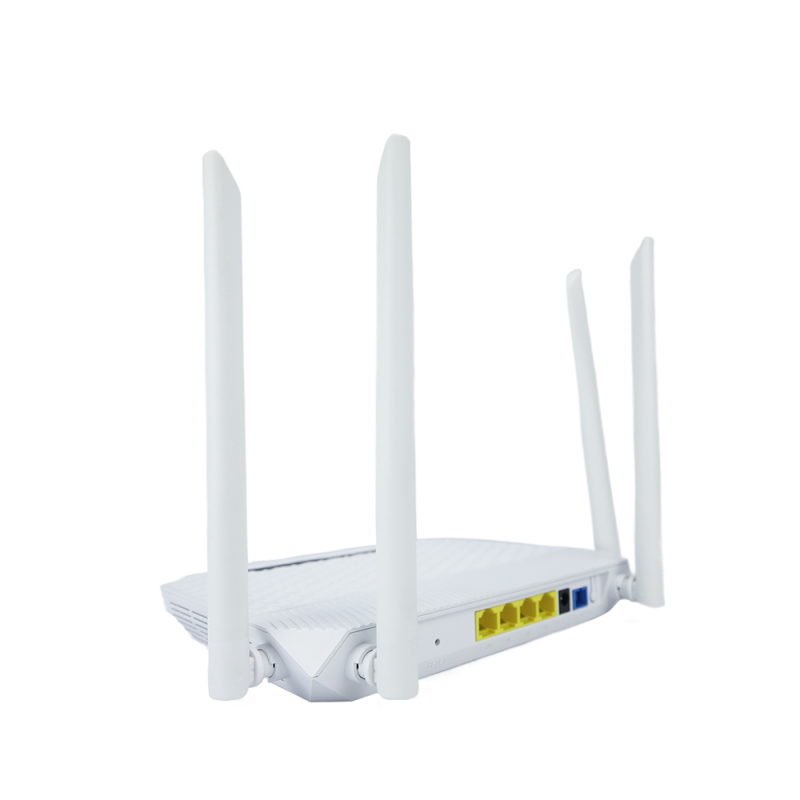

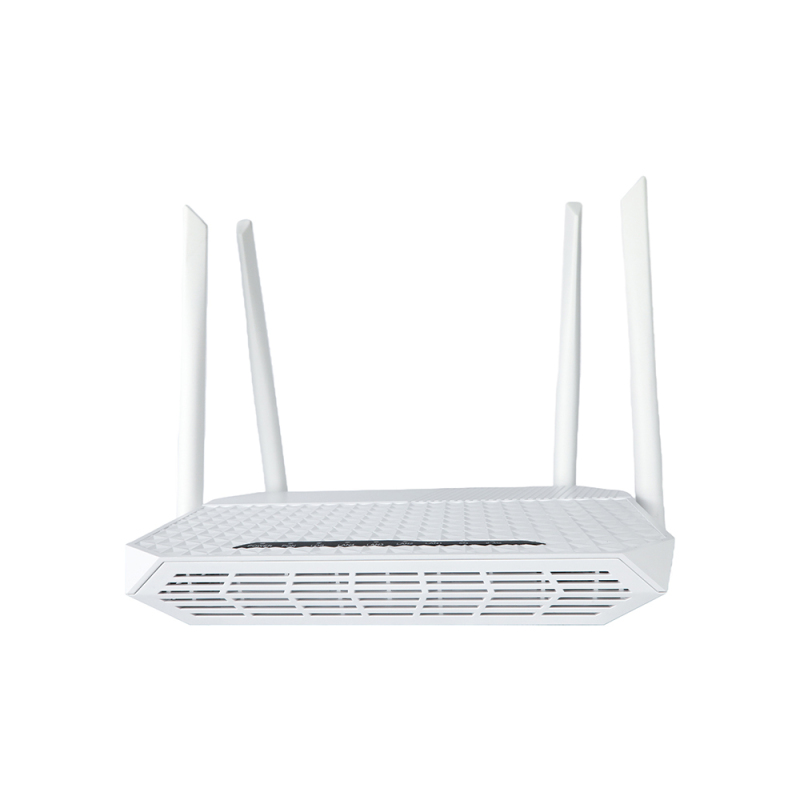

PG-4002XR is designed as HGU (Home Gateway Unit) in different FTTH solutions.The carrier-class FTTH application provides data and video service access .
PG-4002XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
PG-4002XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Stan- dard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Features :
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6 Dual mode
Support 2.4G&5.8G WIFI and Multiple SSID
Support LAN IP and DHCP Server configura-tion
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
Specifications:
| Technical item | Details | ||
| PON Interface |
1 GPON BoB（ Bosa on Board） Receiving sensitivity: ≤-27dBm Transmitting optical power: 0~+5dBm Transmission distance: 20KM |
||
| Wavelength | TX: 1310nm, RX: 1490nm | ||
| Optical Interface |
SC/UPC Connector (Regular) SC/APC(Customize) | ||
| Chip Spec |
RTL9607C DDR3 256MB |
||
| Flash | 1Gbit SPI NAND Flash | ||

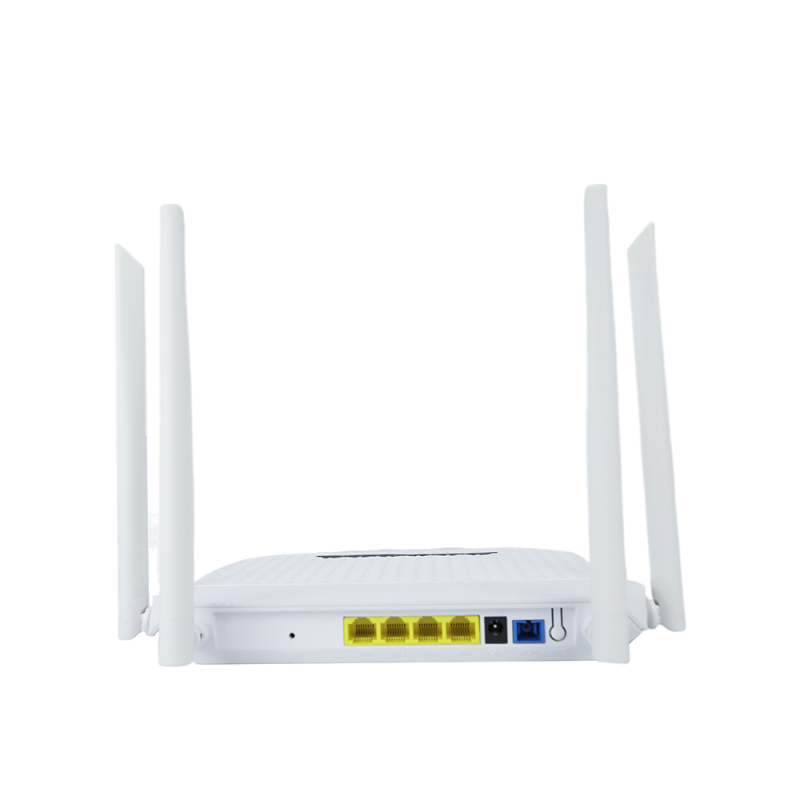

| LAN Interface | 4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector Compliant with IEEE802.11b/g/n, ac 2.4G Operating frequency:2.400-2.4835GHz 5.8G Operating frequency:5.150-5.825GHz |
||
| Wireless |
2.4G 2*2 MIMO, rate up to 300Mbps 5.8G 2*2 MIMO, rate up to 867Mbps 4 external antennas 5dBi Support Multiple SSID |
||

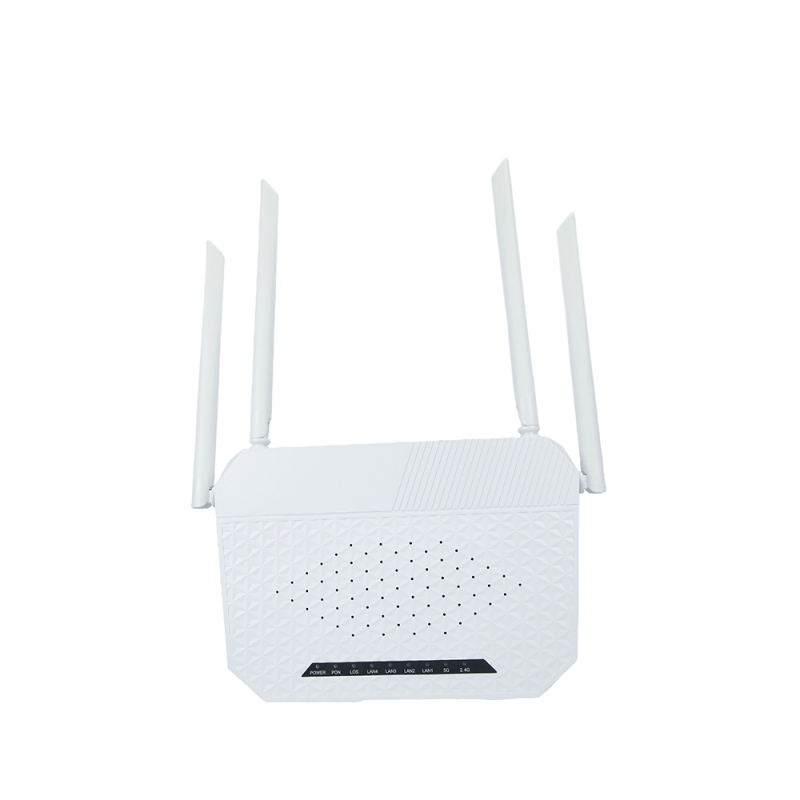

| LED | 9 LED, For Status of PWR、 LOS、 PON、 LAN1~LAN4、2.4G、5.8G |
||
| Push-Button |
2 For Function of Factory Reset and WPS | ||
| Operating Condition | Temperature: 0 ℃~+50 ℃ Humidity: 10% ～90%（ non-condensing） |
||
| Storing Condition | Temperature: -30℃~+60 ℃ Humidity: 10% ～90%（ non-condensing） |
||
| Power Supply |
DC 12V/1A | ||
| Power Consumption |
≤6W | ||
| Dimension | 248mm×158mm×29mm（ L×W×H） |
||
| Net Weight |
0.3Kg | ||
