Description

Product Overview

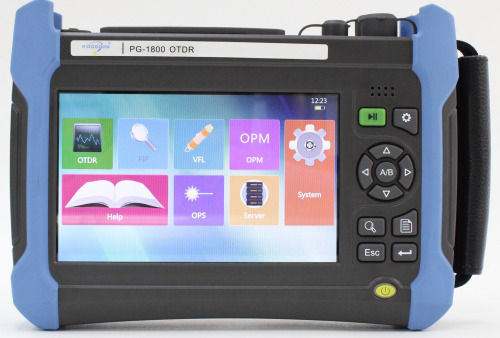

OTDR can used to test single-mode wavelengths of 1310nm, 1550nm, 1490nm, 1625nm and 1650nm, multi-mode wavelengths of 850nm and 1300nm as well as customized special wavelengths. It provides multiple optional modules, such as single wavelength, multi-wavelength and online test. With the maximum dynamic range of up to 50dB, the device can be used for remote multi-branch communication network test. It's designed with a  event dead zone of 0.5m which makes the near connection easy to be supervised, and the lowest sampling resolution of 2.5cm which enables it to locate the event point accurately. Additionally, the device is also designed with multiple convenient functional options, such as stable light source, optical power meter, visible red light source and fiber end face inspection tester.
OTDR is designed with an operating temperature and a storage temperature of -10~50 and -40~70 respectively to meet both EMC requirements as well as vibration and shock test requirements, a MTBF(θ0) of 6000h or above to ensure a high reliability, and a 75W built-in Li battery to ensure an endurance for continuous measurement in the wild field.

Main Characteristics

  1. aximum dynamic range up to 50dB, and 256k data sampling points;
  2. Online test of PON network;
  3. Integrated mono-mode and multi-mode test;
  4. Automatic monitoring of optical communication signals;
  5. File formats of Bellcore GR196 and SR-4731 supported.


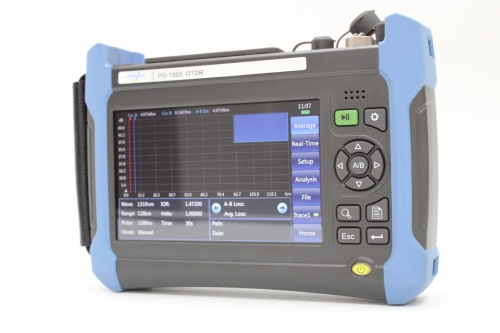

Rapid automatic test

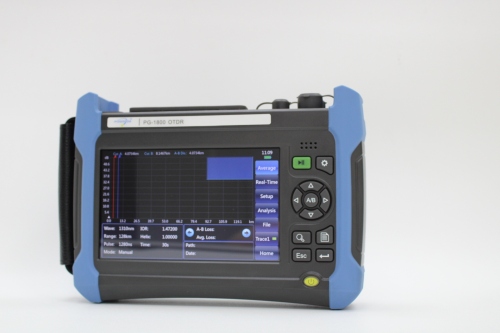

Due to the automatic test function of OTDR, it's not necessary for the user to know more about its operation. Connect the optical fiber and press the [Test] button. Then, the device will set the optimum test conditions automatically, and finally output accurate test results, such as the test curve and the list of events.


Unique PON network test
As an ideal tester of ODN and FTTx, OTDR is provided a unique built-in PON network test function, can penetrate an optical splitter of up to 1:128, and can be used to test each branch of the PON network accurately.
Automatic monitoring and alarm of incoming optical signals
When the OTDR is testing the optical fiber line, the optical communication signal in the optical fiber, if any, will lead to inaccurate test results and even unrecoverable damages to the detectors in the device. OTDR can monitor the optical communication signal in the optical fiber under test automatically. As long as the optical fiber under test is connected to the optical interface of OTDR, the device can automatically sense and monitor whether there is optical communication signal in it. Once an optical signal is monitored, it will prompt an alarm in time, so as to provide the quickest and the most timely protection for the device.

Typical Applications


Technical Specifications

Maximum dynamic range See the “Technical specifications for each standard module of OTDR” for more information.
Ranging accuracy ±(0.75 + sample interval + 0.0025% × range)(excluding the refractivity placement error) (m)
Ranging resolution 0.05, 0.1, 0.2, 0.5, 1, 2, 4, 8, 16 and 32m
Test range 0.4, 0.8, 1.6, 3.2, 6.4, 16, 32, 64, 128, 256 and 512km (mono-mode);
0.4, 0.8, 1.6, 3.2, 6.4, 16 and 32km (850nm multi-mode)
Testing PW 3, 5, 10, 30, 80, 160, 320, 640, 1280, 5120, 10240 and 20480ns
3, 5, 10, 30, 80, 160, 320, 640 and 1280ns(850nm multi-mode)
Maximum number of sampling points 256k
Linearity 0.03dB/dB
Loss resolution 0.001dB
Refractivity setting range 1.00000 ~ 1.99999(step: 0.00001)
Range unit km, m, thousand feet, feet
Display 800×480, 7-inch TFT color LCD (a capacitive touch screen in the  standard configuration, and a resistive touch screen optional)
Optical output interface FC/UPC (standard configuration, with LC/UPC, SC/UPC and ST/UPC optional)
Interface language Simplified Chinese, English, Russian and Korean available (contact the office for other language support)
External interfaces USB, Micro-USB, 10M/100M Ethernet, earphone and Micro SD
Power supply AC/DC adapter: AC100V~240V, 50/60Hz and 1.5A; DC: 17V±3V(2A)
Internal Li battery: 11.1V, 6800mAh, battery operating time: 8h
Power consumption 10W
Dimensions 252mm(W)×180mm (H)×55mm (D)
Weight About 1.8kg
Environmental adaptability Operating temperature: -10~+50 (battery charging: 5~40)
Storage temperature: -40~+70 (battery: -20~60)
RH: 5% ~95%, no condensation
  1.
Operating wavelength: 650nm±20nm
Output power: 2mW (typical)
Operating mode: CW, 1Hz and 2Hz
  1. Optical power meter
Wavelength range:
1310/1490/15501625/nm
Power range: -60dBm~0dBm
Uncertainty: ±5%(-25dBm, CW)
  1. Stable light source
Operating wavelength: the same as OTDR
1310/1550/1625nm
Output power: ≥-5dBm
Operating mode: CW, 270Hz, 1kHz and 2kHz
Module number
PG-1800
Operating wavelength Laser
wave length
Dynamic range2
(dB)
Event dead zone3
(m)
ATT dead zone4
(m)
OTDR–1105 Mono-mode 1625nm (built-in filter)  Single 36 0.5 3
OTDR–1106 Mono-mode 1650nm (built-in filter)  36
OTDR–1201 Multi-mode 850nm  24 0.7 5
OTDR–1202 Multi-mode 1300nm  36
OTDR–2101 Mono-mode 1310/1550nm  Dual 37 / 35 0.5 3
OTDR–2102 Mono-mode 1310/1550nm 42 / 40
OTDR–2103
