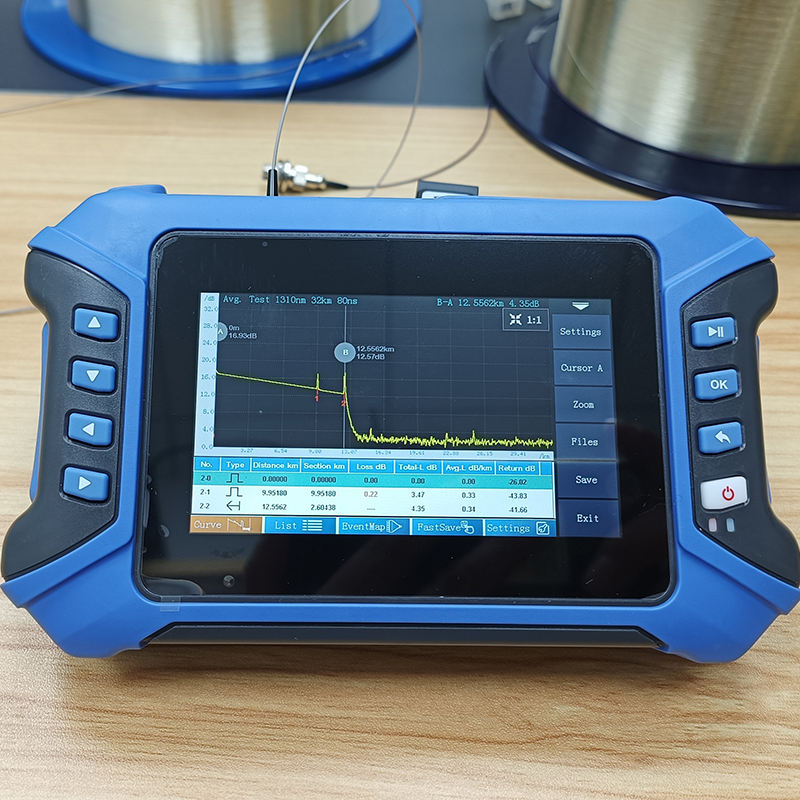

PG-1600 series OTDR

Product Description:

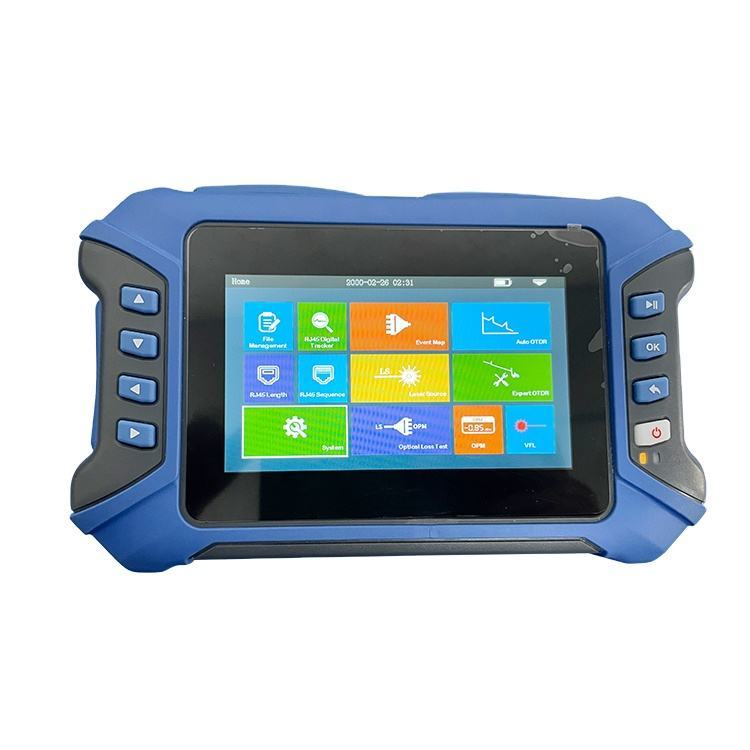

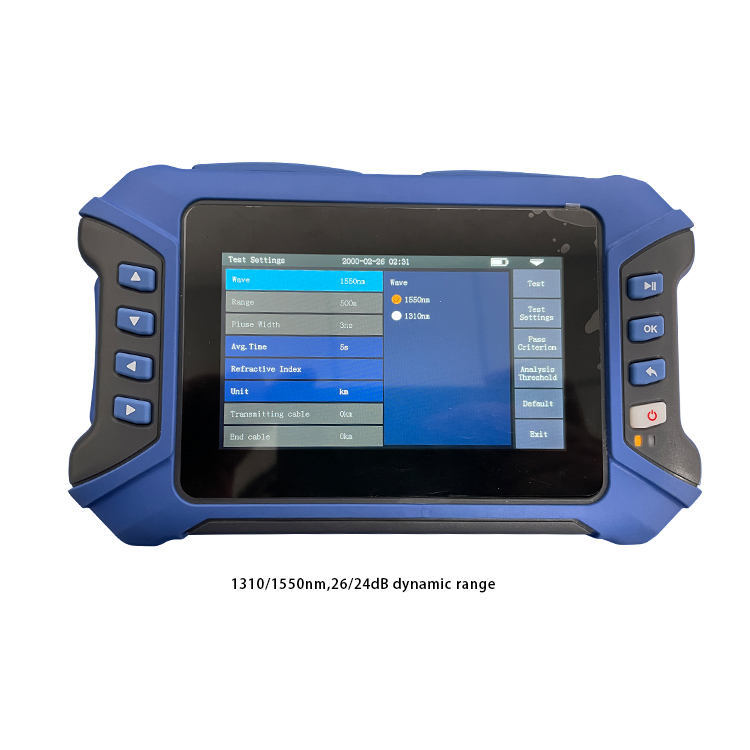

PG-1600 Mini Pro series OTDR adopts 4.3-inch capacitive touch screen. It integrates 12 functions, such as auto OTDR, expert OTDR, event map, OPM, RJ45 cable tracker, and "computer leveI" file management to meet various test require-ments in different occasions. OTDR has a maximum dynamic range of 26dB, 8G memory, and can store more than 200,000 curves; it is equipped with 4000mAh high-density polymer lithium battery, intelligent power saving management, measuring time of more than 8 hours, and supporting power supply and charging of the power bank.

series are used to measure the length, loss, connection quality and other parameters of optical fiber. It is widely used in FTTX, sec on dary backb one n etwork engin eer-ing construction, maintenance and emergency repair test, and production measurement of optical fiber and cable.

Overview:
This series of OTDR is a multi-functional optical measuring instrument, which integrates auto OTDR, expert OTDR, event map, optical power meter, visual fault location, power adjustable stable light source, end face detection, optical loss test, cable line length / sequence test, cable tracking and other functions. It has touch screen . It is the right assistant for optical cable construction, installation and maintenance, project acceptance and on-site repair.

Specification:
