PG-1500 series OTDR

Description Review
Description
PG-1500 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter of a new generation for the detection of fiber communications systems. With the popularization of optical network construction in cities and countrysides, the measurement of optical network becomes short and disperse; PG-1500 is specially designed for that kind of application. It’s economic, having outstanding performance.
PG-1500 is manufactured with patience and carefulness, following the national standards to combine the rich experience and modern technology, subject to stringent mechanical, electronic and optical testing and quality assurance; in the other way, the new design makes PG-1500 more smart and compact and multi-purpose.
Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, PG-1500 can be your best assistant.
FEATURES
* Integrated design, smart and rugged
* IP65 protection level, outdoor enhanced
* 7-inch anti-reflection LCD screen
* PON online test module (1625nm) is optional
* MMF test module (850/1300nm) is optional
* Support multi-language display and input

APPLICATIONS
* FTTX test with PON networks
* CATV network testing
* Access network testing
* LAN network testing
* Metro network testing
Specification
Dimension 253×168×73.6mm
1.5kg (battery included)
Display 7 inch TFT-LCD with LED backlight (touch screen function is optional)

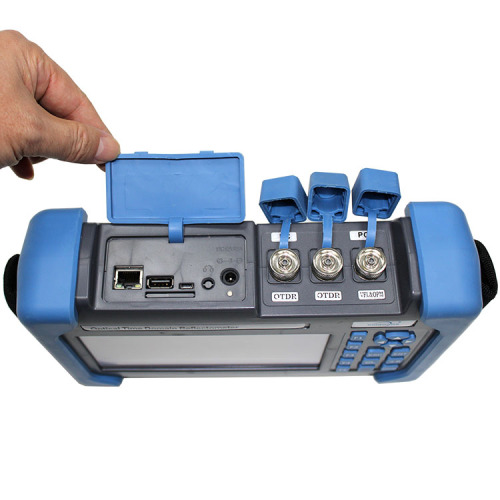

Interface 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type B USB×1)
Power Supply 10V(dc), 100V(ac) to 240V(ac), 50~60Hz
Battery 7.4V(dc)/4.4Ah lithium battery (with air traffic certification)
Operating time: 12 hours, Telcordia GR-196-CORE
Charging time: <4 hours (power off)
Power Saving Backlight off: Disable/1 to 99 minutes
Auto shutdown: Disable/1 to 99 minutes
Data Storage Internal memory: 4GB (about 40,000 groups of curves)
Language User selectable (English, Simplified Chinese, traditional Chinese, French, Korean, Russian, Spanish and Portuguese-contact us for availability of others)
Environmental Conditions Operating temperature and humidity: -10℃~+50℃, ≤95% (non-condensation)
Storage temperature and humidity: -20℃~+75℃, ≤95% (non-condensation)
Proof: IP65 (IEC60529)

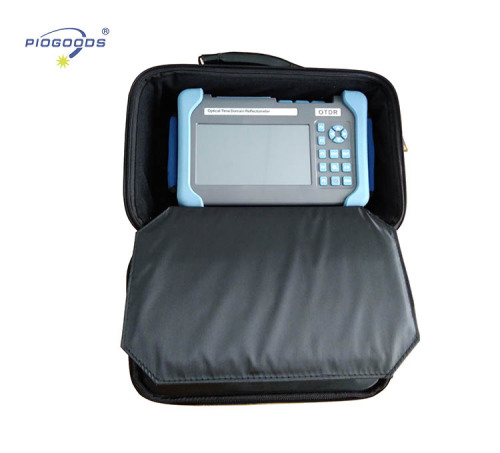

Accessories Standard: Main unit, power adapter, Lithium battery, FC adapter, USB cord, User guide, CD disk, carrying case
Optional: SC/ST/LC adapter, Bare fiber adapter

Technical parameter
Type Testing Wavelength
(MM: ±20nm, SM: ±10nm)
Dynamic Range (dB) Event/Attenuation Dead-zone (m)
PG-1500-M26 850/1300 28/26 1.5/8
PG-1500-MD33 850/1300
1310/1550
28/26
35/33
1.5/8
1.5/8
PG-1500-MD36 850/1300
1310/1550
28/26
38/36
1.5/8
1.75/11
PG-1500-MD38 850/1300
1310/1550
28/26
40/38
1.5/8
1.75/11
PG-1500-D32 1310/1550 32/30 1.5/8
PG-1500-D35 1310/1550 35/33 1.5/8
PG-1500-D40 1310/1550 40/38 1.75/11
PG-1500-D43 1310/1550 43/41 2/14
PG-1500-T40F 1310/1550/1625 40/38/38 1.75/11
PG-1500-T43F 1310/1550/1625 43/41/41 2/14
PG-1500-T45F 1310/1550/1625 45/43/43dB 2/14

Test parameter
Pulse Width Single mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs, 5μs, 10μs, 20μs
Multi-mode: 3ns, 5ns, 10ns, 20ns, 50ns, 100ns, 200ns, 500ns, 1μs, 2μs
Testing Distance Single mode: 100m, 500m, 2km, 5km, 10km, 20km, 40km, 80km, 120km, 160km, 240km
Multi-mode: 500m, 2km, 5km, 10km, 20km, 40km
Sampling Resolution 5cm
Sampling Point Maximum 128,000 points
Linearity ≤0.05dB/dB
scale Indication X axis: 4m~70m/div, Y axis: 0.09dB/div
Distance Resolution 0.01m
Distance Accuracy ±(1m+measuring distance×3×10-5+sampling resolution) (excluding IOR uncertainty)
Reflectance Accuracy Single mode: ±2dB, multi-mode: ±4dB
IOR Setting 1.4000~1.7000, 0.0001 step
Units Km, miles, feet
OTDR Trace Format Telcordia universal, SOR, issue 2 (SR-4731)
OTDR: User selectable automatic or manual set-up
Testing Modes Visual fault locator: Visible red light for fiber identification and troubleshooting

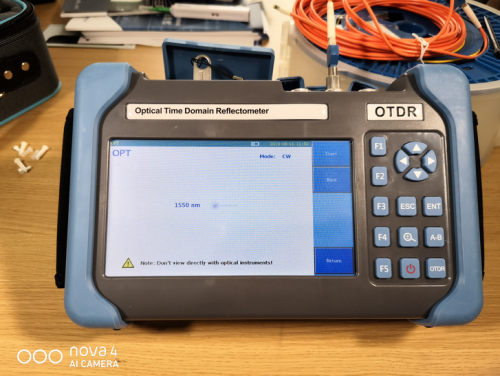

Light source: Stabilized Light Source (CW, 270Hz, 1kHz, 2kHz output)
Field microscope probe
Fiber Event Analysis -Reflective and non-reflective events: 0.01 to 1.99dB (0.01dB steps)
-Reflective: 0.01 to 32dB (0.01dB steps)
-Fiber end/break: 3 to 20dB (1dB steps)
Other Functions Real time sweep: 1Hz
Averaging modes: Timed (1 to 3600 sec.)
Live Fiber detect: Verifies presence communication light in optical fiber
Trace overlay and comparison

VFL Module (Visual Fault Locator, as standard function):
Wavelength (±20nm) 650nm
Power 10mw,CLASSIII B
Range 12km
Connector FC/UPC
Launching Mode CW/2Hz
