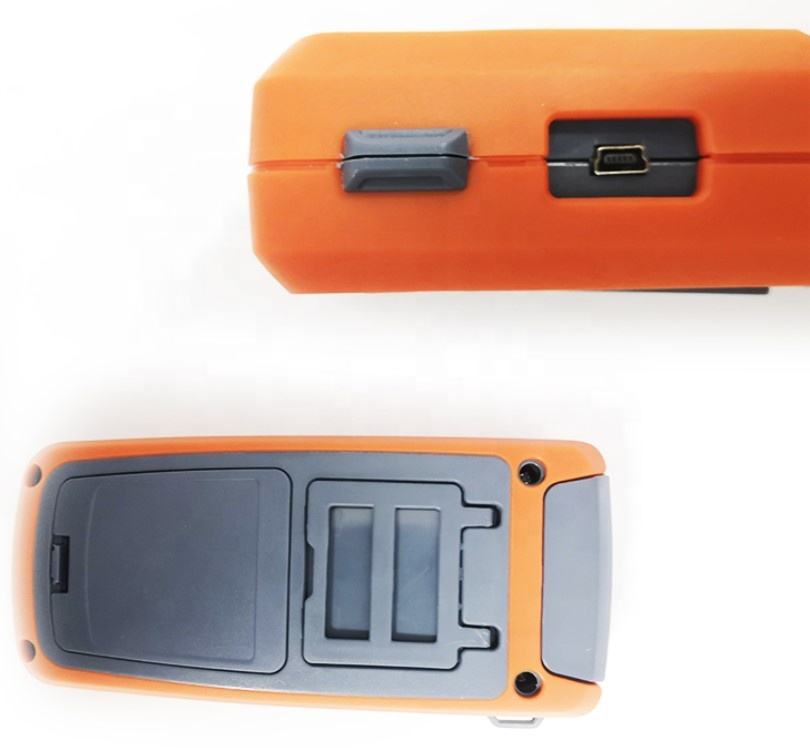

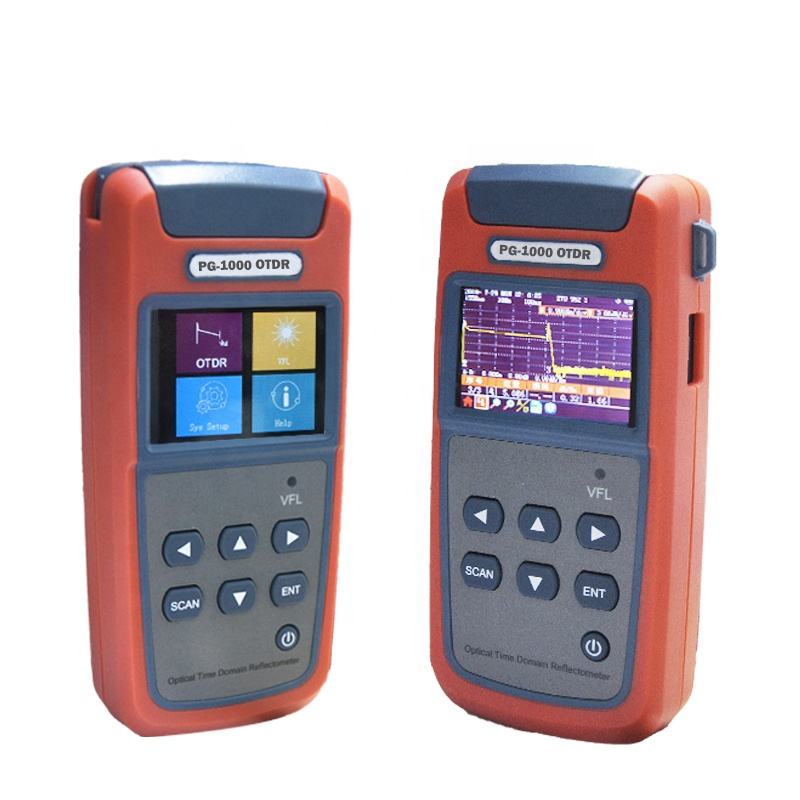

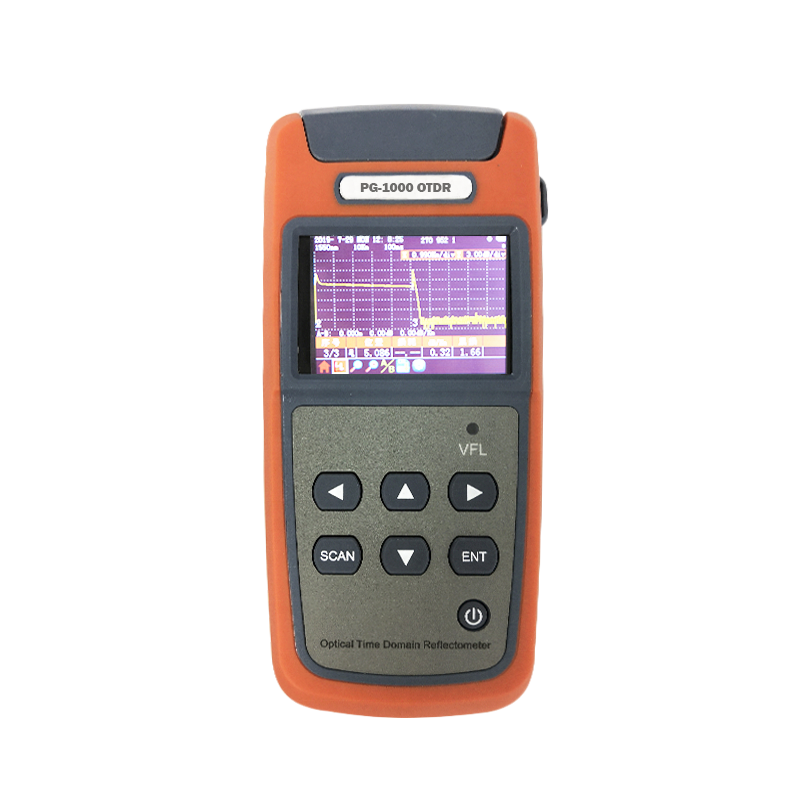

PG-1000 series 1550nm mini OTDR
1, portable, rugged, light weight, easy to use
2, more accurate testing results and better repeatability
3, Automatic Pulse Width Control design to ensure a convenient operation
4, Easy to identify the fault location
5, Built-in Visual Fault Locator (VFL), conveniently to find the faults in dead zone
6, Dust, water and shock proof, designed for field use
7, Long battery life, up to 1000 measurements operation
8, 2.6 inchs screen, data save in SOR format
| Type | PG1000 | ||
| Operation wavelength |
1550nm | ||
| Fiber type |
9/125, SM |
||
| Optic connector type |
SC/UPC |
||
| Dynamic Range |
22dB |
||
| Pulse | 10ns to 10us, auto |
||
| Unit | m | ||
| Reflection Event Dead Zone | 3m | ||
| Attenuation Event Dead Zone |
10m | ||
| Accuracy | ±(1m+2x10-4xdistance) |
||
| Power of VFL | 1mw |
||
| Power supply |
3pcs AA battery |
||
| Battery operation time |
2000times | ||
