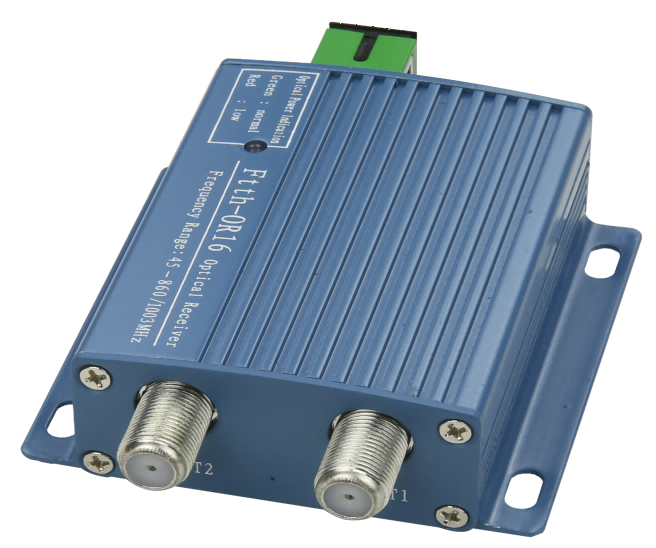

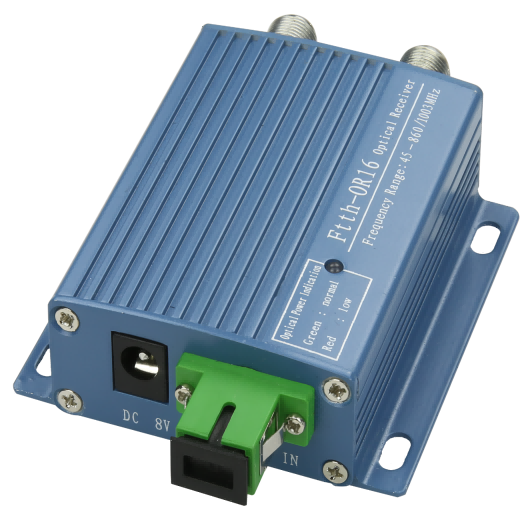

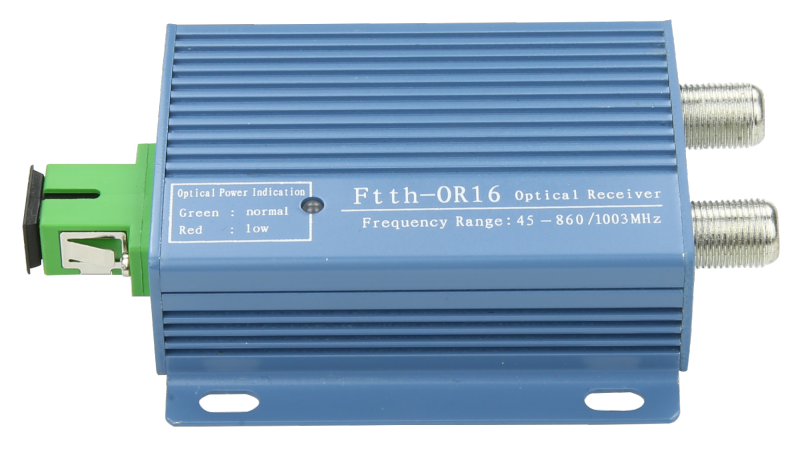

PG-0082ZBOS receicver mini node is specifically designed for CATV FTTH network. Its main feature is low powerconsumption, optical input -3~-12dBm(AGC range can be customizable), optical constant level output, smallVolume and high reliability. Adopting aluminum casing, compact structure and external modular power supplymake the installation and debugging very convenient. It is an ideal product to build FTTH CATV network.
Features :
High quality plastic shell
Input power range +2~-10dBm.
No power supply, no power consumption
Output level≥65dBuv(PIN=+0dBm)
Aluminum casing with good heat dispersion.
Adopts GaAs module as RF amplifying module, the optical receiving range for digital signal can reach.
AGC control range -3~-12dBm, output level keeps unchanged
Low consumption design and total consumption ≤3w, high reliable switching power supply.
supply with optical inspection circuit.
SC/APC or FC/APC optical connector
Realize the 8V input port feeding way of power supply.
Specifications:
Item |
Unit |
Paramter |
Remark |
Optical wavelength |
(nm) |
1100~1600&1550 |
|
Optical input range |
(dBm) |
0~-10 |
Analog TV |
0~-15 |
Digital TV |
||
Output return loss |
(dB) |
≥45 |
|
Bandwidth (MHz) |
MHz |
47~862&1000MHz |
|
Flatness (dB) |
dB |
±1 |
|
RF output level |
(dBuv) |
≥80dBuv(1 port) ≥76dBuv(2ports) |
Pin: -3~-12dBm |
AGC range |
(dBm) |
-3~-12 |
|
Output return loss |
(dB) |
≥14 |
Pin: -3.0~-12.0dBm |
Output impendance |
(Ω) |
75 |
|
CNR (dB) |
dB |
≥51 |
47-1006MHz |
CTB (dB) |
dB |
≥65 |
|
CSO (dB) |
dB |
≥62 |
|
Power supply (V) |
V |
AC110V or AC220V or customized |
|
Power consumption |
W |
≤3 |
|
Operating temperature |
(℃) |
-20~+60 |
|
Dimension |
mm |
105*67*24 |
|
