PG-PON82 Optic PON power meter
Overview:The PON optical power meter is a test meter for FTTx's service anmaintenance. lt can measure voice, data and RF video signals over opticafiber links. The upgraded color LCD display and threshold data functiolthat can be manually set by the instrument machine are more suitable foPON network engineering, construction and maintenance needs
Product Features
Color LCD screen display
Supports synchronous measurement and display of voice, data andvideo signals in a PON architecture
Supports measurement of 1310nm upstream burst signal and1490/1550nm downstream signMeter sets the measurement and alarm threshold Data store function 1000Supports visible red light fault location and common power metel
function
Supports dry battery, lithium battery, nickel metal hydride battery andadapter power supply
Specification:
| PON POWER METER MODE |
| Measuring wavelength |
1310nm |
1490nm |
1551nm |
| Measuring range(dBm) |
+13~-40 |
+13~-50 |
+25~-50 |
| Spectral band-width(nm) |
1310士50 |
1490士10 |
1550+15 |
| IL (dB) |
≤15 |
| Uncertainty (dB) |
≤0.5 |
| Interface type |
SC/PC (optional) |
| Display resolution (dB) |
0.01 |
| Threshold Settings |
10 |
| Data storage |
1000 |
| Standard OPM (optional) |
| Measuring range (dBm) |
+26~-50 |
| Calibration wavelength (nm) |
850/1300/1310/1490/1550/1625 |
| Uncertainty (dB)² |
≤0.5 |
| VFL (optional) |
| Calibration wavelength(nm) |
650 |
| Output power (mW) |
10 |
| Modulation frequency |
Lighting Form，2HZ |
| Others |
| Operating temperature(℃) |
-10~+60 |
| Storage temperature(℃) |
-25~+70 |
| Relative humidity |
≤75%RH |
| Communication interface |
Mini USB |
| Powersupply |
3*AA1.5V battery, Mini USB power |
| Operating time(h) |
≥80H |
| Dimension(mm) |
192mmX105mmX50mm |
| Weight(g) |
300 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Note:1、T=23士2°C test 2、@1550nm,+26~-30 dBm test

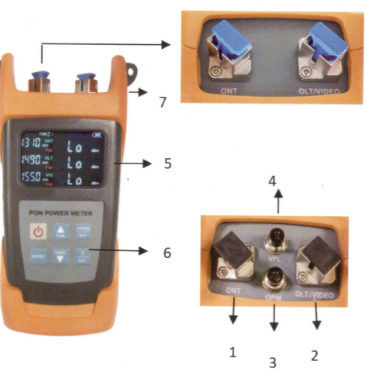

Keypad Instruction
| 1-ONT Uplink signal detection port (1310nm) |
| 2-OLT/VIDEO Downlink signal detection port (1490/1550nm) |
| 3- OPM standard power meter probe port (optional) |
| 4-VFL (optional) |
| 5- Displav screen |
| 6- Key function area |
| 7- Mini USB port |
Note: The standard configuration only provides the PON powermeter function by default. OPM and VFL are optional.
