JET Outdoor 2~48 Core air blown Fiber Optic Cable

Description Review

Description

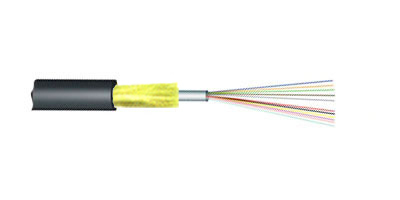

The fibers,250μm, either of single-mode or multimode type, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A layer of aramid yarn or high strength glass is applied around the cable core as additional strength member. Then, the cable is completed with a black or color HDPE sheath.

1.Non-mental design can prevent the cable from radio interference and magnetic wave interference
2.Specially designed compact structure is good at preventing loose tubes from shrinking
3.Aramid yarn ensures good performance of tensile strength
4.Loose tube filling compound ensure good moisture resistance performance
5.Good flexibility
6.High dense fiber packed, small diameter and light weight; it's the better option for blowing

installation process

		G.652	G.655	50/125μm	62.5/125μm
Attenuation (+20℃)	@850nm			≤3.0 dB/km	≤3.0 dB/km
	@1300nm			≤1.0 dB/km	≤1.0 dB/km
	@1310nm	≤0.36 dB/km	≤0.40 dB/km
	@1550nm	≤0.22 dB/km	≤0.23dB/km
Bandwidth (Class A)	@850nm			≥500 MHz·km	≥200 MHz·km
Bandwidth (Class A)	@1300nm			≥1000 MHz·km	≥600 MHz·km
Numerical Aperture				0.200±0.015NA	0.275±0.015NA
Cable Cut-off Wavelength λcc	≤1260nm	≤1480nm
