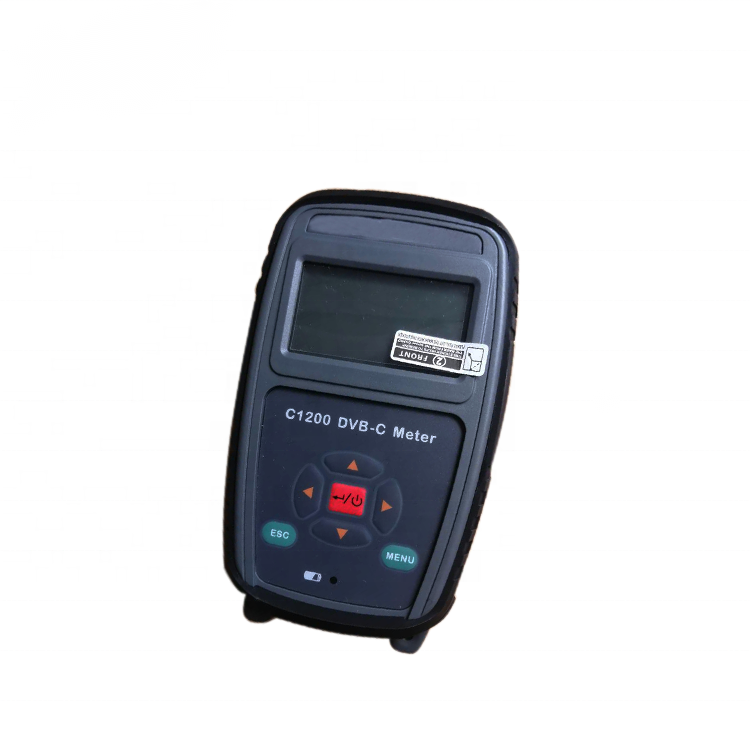

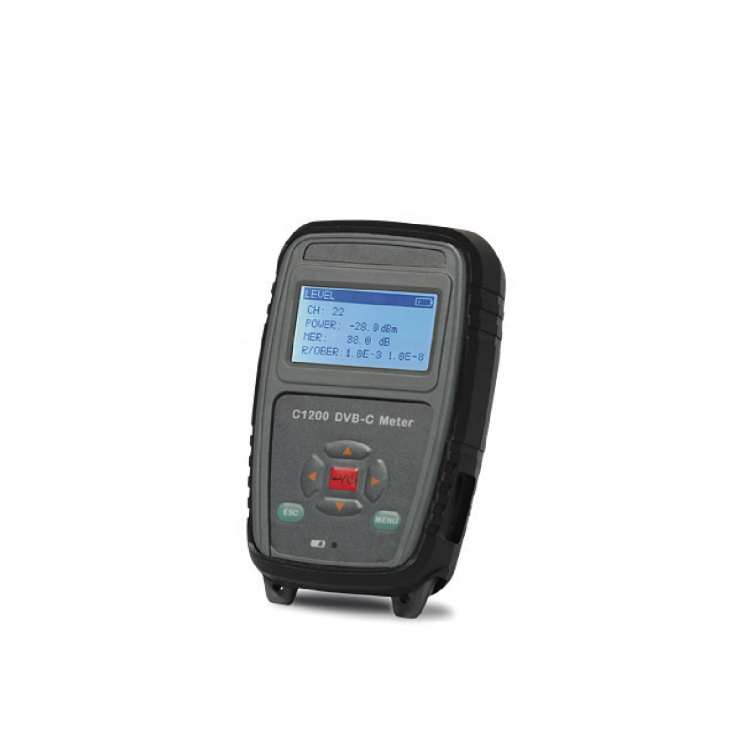

C1200 DVB-C Meter
Feature:
• Analog TV Analysis: Level, Tilt, C/N, Scan and Trunk Voltage
• Digital TV Analysis: Power Level, MER and BER
• 128×64 backlit LCD screen
• Li-ion battery provides >4 hrs. operation
• Upgrade software and edit channel plans easily via USB interface
| Analog CATV | |
|
Frequency Range
|
5~1200MHz |
|
Level |
30~120dBuV |
|
Accuracy |
±2.0dB |
|
RBW |
300K |
|
C/N |
>50dB |
|
C/N Accuracy |
±3.0dB |
|
Others |
ChannelScan, Tilt, Trunk Voltage |
|
DVB-C |
|
|
Frequency Range |
5~1200MHz |
|
Power Level |
30 ~ 110dBuV |
|
Power Level Accuracy |
±2.0dB |
|
MER |
>40 |
|
MER Accuracy |
±2.0dB |
|
BER |
1E-3~1E-9 |
|
Modulation Type |
64 / 256 QAM (J.83B) |
|
Symbol Rate |
1~7 MS/s |
|
Interface |
|
|
RF Input |
75Ω J Type |
|
AC Adapter |
12V/1.2A |
|
USB |
Mini-USB |
|
Battery |
|
|
Capacity |
8.4V/1.6A |
|
Working Time |
>4 hours |
|
Charging Time |
3 hours |
|
Other Specification |
|
|
Dimensions (H×W×D) |
153mm x 93mm x 42mm (6.0" x 3.7" x 1.7") |
|
Weight |
358g (12.6 oz) |
