4GE+2.4G&5GHz Wifi+1POST XPON ONU
4001XR is designed as HGU (Home Unit) in different FTTH solutions. The carrier-class FTTH application provides data and video service access .
4001XR is based on mature and stable, cost-effective XPON technology. It could switch automatically into EPON mode or GPON mode when access to the EPON OLT and GPON OLT.
4001XR adopts high reliability, easy management, configuration flexibility and good quality of service guarantees to meet the technical performance of EPON Standard of China Telecom CTC3.0 and GPON Standard of ITU-TG.984.X
Support EPON/GPON mode and switch mode automatically
Support Route mode for PPPoE/DHCP/Static IP and Bridge mode
Support IPv4 and IPv6
Support 2.4G&5.8G WIFI and Multiple SSID
Support SIP Proctol for Voip Service
Support LAN IP and DHCP Server configuration
Support Port Mapping and Loop-Detect
Support Firewall function and ACL function
Support IGMP Snooping/Proxy multicast feature
Support TR069 remote configuration and maintenance
Specialized design for system breakdown prevention to maintain stable system
|1 GPON BoB（Bosa on Board）
|Receiving sensitivity: ≤-28dBm
|Transmitting optical power: +1~+4dBm
|Transmission distance: 20KM
|TX: 1310nm, RX: 1490nm
|1Gbit SPI NAND Flash

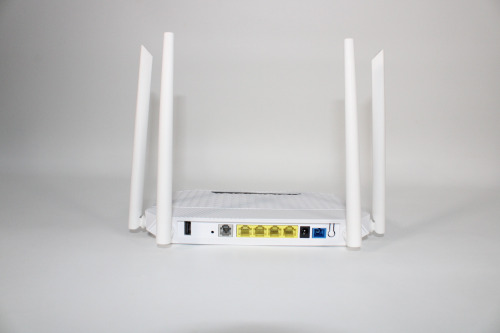

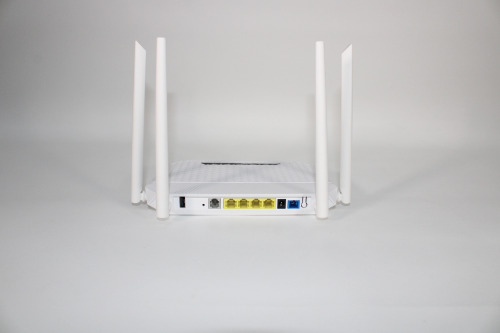

|4 x 10/100/1000Mbps auto adaptive Ethernet interfaces. Full/Half, RJ45 connector
|Compliant with IEEE802.11b/g/n,ac
|2.4G Operating frequency:2.400-2.4835GHz
|5.8G Operating frequency:5.150-5.825GHz
|2.4G 2*2 MIMO, rate up to 300Mbps
|5.8G 2*2 MIMO ,rate up to 867Mbps
|4 external antennas 5dBi
|Support Multiple SSID
|FXS, RJ11 connector
|Support: G.711/G.723/G.726/G.729 codec
|Support: T.30/T.38/G.711 Fax mode, DTMF Relay
|Line testing according to GR-909
|9 LED, For Status of PWR、LOS、PON、LAN1~LAN4、2.4G、5.8G
|2 ,For Function of Reset and WPS
Panel lights Introduction:
|The device is powered up.
|The device is powered down.
|The device doses not receive optical signals or with low signals.
|The device has received optical signal.
|The device has registered to the PON system.
|The device is registering the PON system.
|The device registration is incorrect.
|Port (LANx) is connected properly (LINK).
|Port (LANx) is sending or/and receiving data (ACT).
|Port (LANx) connection exception or not connected.
|2.4G WIFI interface up
|2.4G WIFI is sending or/and receiving data (ACT).
|2.4G WIFI interface down
|5G WIFI interface up
|5G WIFI is sending or/and receiving data (ACT).
|5G WIFI interface down
