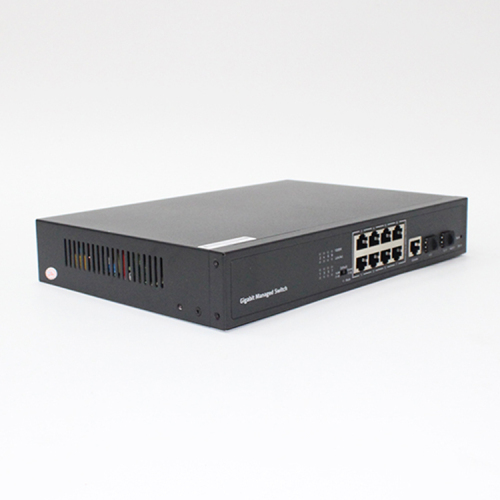

Model number:PGME-G110-208IM
Characteristics：
l 8*10/100/1000M ports;
l 2* Gigabit SFP ports;
l 1*Console;
l Total Power Consumption:15W
l Up to 100m network cable transmitting distance, support flexible network expansion without power line deployment concerns. Users can freely fix their wireless APs, IP cameras or other end devices on the wall or ceiling;
l Support short-circuit protection function, the switch will automatically start short-circuit function and cut off the power supply when there is high-current or other power failures, which can efficiently defend against device damage or network failures caused by line fault or wrong installation;
l Energy-saving green design, support auto-switch to standby mode and auto-detect cable length. It will stay in standby mode and save the power when the port is disconnected , or provide a lower transmission power when the network cable is less than 10m;
l Support simple WEB management, easy to configure the functions of switches
Overview:
The product is a Gigabit managed switch. The transmission distance is more than 100m. It is easy to install and use plug and play. It is very suitable for wireless city, security monitoring and other industries.
Product Specifications:
|
Item |
PGME-G110-208IM Gigabit Managed Switch |
|
|
8*10/100/1000 Base-T |
|
2*1000 Base-X SFP |
|
|
Total Power Consumption |
15W |
|
Switching Capacity |
≥52Gbps |
|
Forwarding Mode |
Full wire-speed storage and forwarding |
|
Forwarding Rate |
10M：14880pps/port |
|
100M：148809pps/port |
|
|
1000M：1488095pps/port |
|
|
Operation Temperature |
-20~50°C |
|
Storage Temperature |
-40~70°C |
|
Storage Humidity |
5%～95%(non-condensing) |
|
Dimensions |
280（L)*180(W)*44(H)mm |
|

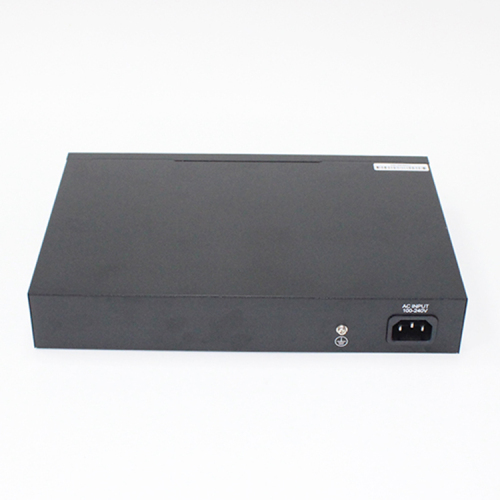

Input Power Supply |
AC：110-240V ~ 50-60Hz |
|
Weight |
<10Kg |
|
LED Indicator |
Power，Link/Act |
|
Energy Saving |
Comply with “EEE” Energy Efficient Ethernet |
Service Features:
|
Item |
PGME-G110-208IM Gigabit Managed Switch |
|
Protocol and Standards |
IEEE 802.3, 10 BASE-T Ethernet |
|
IEEE 802.3ad, Static or Dynamic Link Aggregation |
|
|
IEEE 802.3u,100 BASE-TX |
|
|
IEEE 802.3ab,1000 BASE-T |
|
|
IEEE 802.3z,1000 BASE-X |
|
|
IEEE 802.3x,Full-Duplex Flow Control |
|
|
MAC Address |
8K MAC addresses |
|
Support auto-update, two-way learning |
|
|
VLAN |
Supports VLAN based on ports, protocols and ACL |
|
Maximum 4K VLANs |
|
|
VLANs based on IEEE 802.1q |
|
|
Spanning Tree |
STP Spanning Tree Protocol |
|
RSTP Rapid Spanning Tree Protocol |
|
|
Port Aggregation |
8 aggregation groups,each containing up to 8 ports; |
|
Port Mirroring |
Many-to-one mirroring(that is, multiple mirroring ports, and one monitor port) |
|
Loop Protection |
Ring protection, real-time detection/quick alarm/accurate location/intelligent blocking/auto-recovery |
|
Port Isolation |
Isolate the communication between ports, only uplink permitted |
|
Traffic Control |
Back-pressure traffic control under Half-Duplex mode |
|
IEEE 802.3x traffic control under Full-Duplex mode |
|
|
Flow Rate Limitation |
Port-based ingress or egress rate limiting |
|
Multicast |
IGMPv1/v2/v3 and MLDv1/2 Snooping |
|
Storm Suppression |
Supports multiple storm suppression:UC,MC,unknown cast and broadcast. |
|
Supports attack against strategy, against Land attack,Blat attack,Ping attack and TCL controued Flag attack. |
|
|
Binding of user port ,IP address and MAC address |
|
|
Security limitation based on port MAC address quantity |
|
|
QOS |
SP（Strict Priority) |
|
WFQ (Weighted Fair Queuing) |
|
|
WRR (Weighted Round Robin) |
|
|
Random Early Detect(RED) |
|
|
Weighted Random Early Detection(WRED) |
|
|
Head of Line |
|
|
802.1p (Port Queuing Priority) |
|
|
DSCP Priority(Differentiated Service Code Point) |
|
|
Standard Wiring |
Support Auto-MDIX |
|
Negotiation Mode |
Auto-negotiation |
|
System Maintenance |
Check the connectivity of network cables |
|
Upload/Download configuration files |
|
|
Upload upgrade patch |
|
|
View system log |
|
|
Supports factory reset |
|
|
Management |
Visual web interface management |
|
CLI management |
|
|
Telnet management |
|
|
SNMP management |
