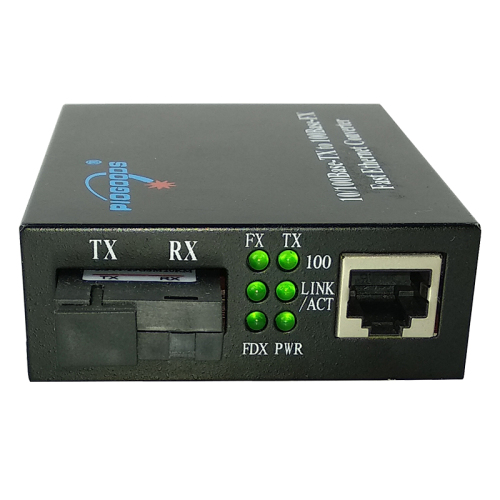

PIOGOODS series Ethernet media converter can interconvert electrical signals of 10Base-T and 100Base-TX twisted pairs with optical signals of 100Base-FX. It extends the network transmission distance from 100m via copper cables to 120km via fiber optical cable. It enables the data to transmit in two different mediums of electrical and optical networks either by the technology of data link L2 store-and-forward, or by the one of PHY L1 cut-through). It supports transmission in multi-mode dual fiber, single-mode dual fiber, single-mode single fiber.
Features:
10/100Mbps auto-sensed, facilitating network upgrade
Built-in efficient switching core to implement flow control and reduce broadcast packets
full-duplex and half-duplex auto-sensed
Supporting automatic cross connection of twisted pair interfaces, facilitating system commissioning and installation
Supporting half /full-duplex of FX and link failure alert with optional dip-switch
Supporting 10/100Mbps store-and-forward and 100Mbps cut-through transmission with optional dip-switch(unique)
Supporting low-timelag transmission
Supporting the transmission of extra-long packets up to1600 bytes
Supporting the transmission of extra-long VLAN packets
Supporting Quality of Service (QoS) , ensuring the transmission of VoIP packets
Supporting STP to form a redundant network
Extremely low power consumption (less than 2W), low heat, reliable and stable performance, and long lifetime
Application:
10/100Mbps fast optical Ethernet long-distance transmitting network
Technical Indexes:
Parameter |
Specifications |
Access mode |
10/100Mbps |
Standard |
IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS,IEEE802.1d Spanning Tree |
Wavelength |
Mulitmode:850/1310nm; Single-mode:1310/1550nm (Option) |
Transmission distance |
Dual-fiber multi-mode: 2 km; single-mode:20~120km Category-5 twisted pairs: 100m |
Port |
One RJ45 port: For connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm) |
Conversion means |
Media conversion, store-and-forward/cut-through |
MAC address table |
1K |
Buffer space |
1Mbit |
Flow control |
Full duplex: flow control; Half duplex: back pressure |
Delay |
Store-and-forward: 9.6μs; cut-through: 0.9μs |
BER |
<19-9 |
MTBF |
100,000 hours |
LED indicator |
PWR (power supply); FX LINK/ACT (optical link/action) FDX (FX full duplex), TP LINK/ACT (twisted pairs link/action) TP 100 (100M transmission rate of twisted pairs), FX 100 (100M transmission rate of optical fiber) |
Power supply |
DC5V 1A (external), AC220 0.5A/DC-48 (internal) |
